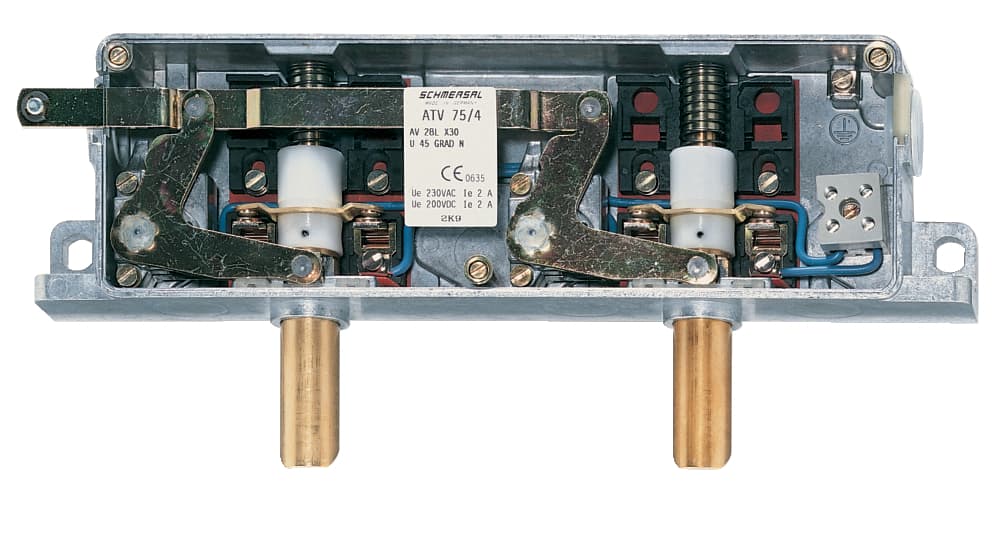

AV28RKX11.5U Schmersal Electronic Components

Product Details

• Ambient temperature, minimum
  -15 °C
• With fail-safe locking system (Y/N)
  No
• Number of safety contacts
  2
• Thermal test current
  10 A
• Material of the latching bolt
  Brass
• Orientation / Alignment
  right-hand model
• Note (X-dimension of the latching bolt)
  The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
• Switching element
  NC contact, NO contact
• Enclosure material
  Light alloy die-casting
• Cable entry
  without cable gland
• Height
  80 mm
• Ambient temperature, maximum
  +70 °C
• Utilisation category DC-13
  2 A
• Manual release
  Yes
• Mounting
  rear-side mounting holes
• X-dimension of the latching bolt
  11.5 mm
• Rated insulation voltage Ui
  400 VAC
• Safety functions
  Yes
• Depth
  36 mm
• Latching bolt bevelling, bottom
  45 °
Material of the contacts, electrical
Silver
Width
285 mm
Rated impulse withstand voltage Uimp
6 kV
Switching principle
Slow action
Standards
EN 81-20, EN 81-50
Actuating element
Pull strap
Gross weight
1,210 g
Number of door leafs
2
Diameter of the latching bolt
18 mm
Degree of protection
IP20
Utilisation category AC-15
230 VAC
