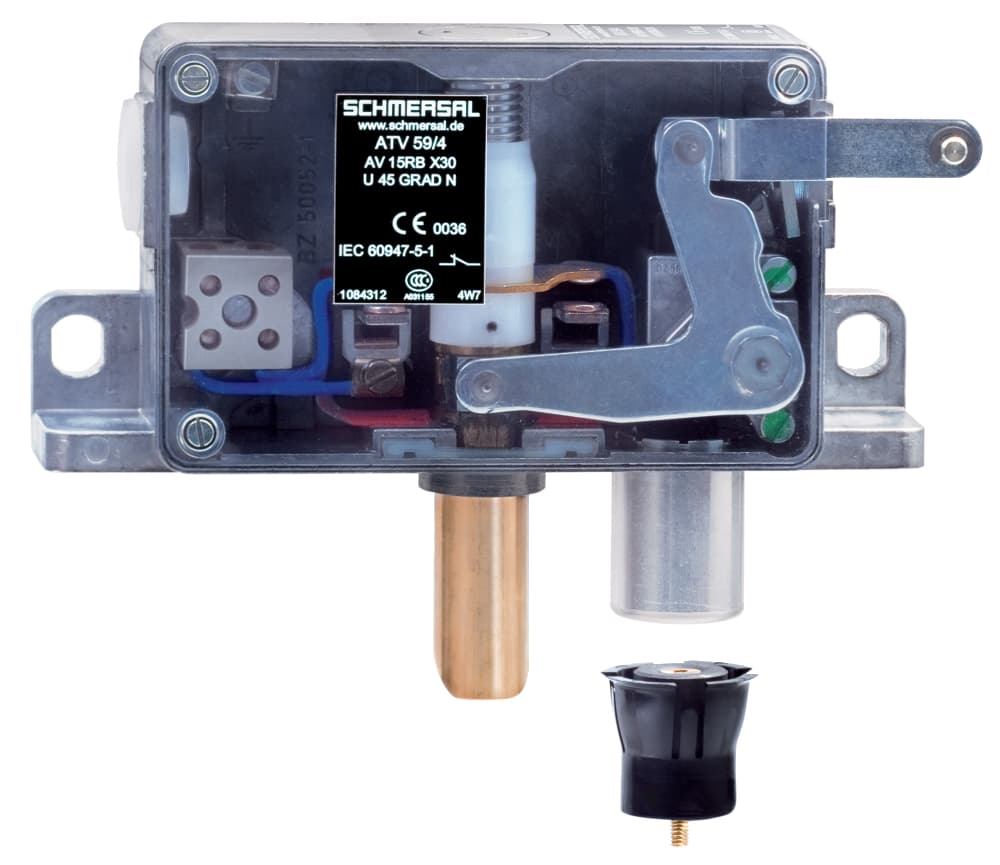

AV15RB2KX11.5U-GB215 Schmersal Electronic Components

Product Details

• Material of the contacts, electrical
  Silver
• Note (Cable entry)
  Graphic representation: left version mirror image
• Diameter of the latching bolt
  18 mm
• Ambient temperature, minimum
  -15 °C
• Standards
  EN 81-20, EN 81-50
• Cable entry
  without cable gland
• Note (X-dimension of the latching bolt)
  The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
• Mounting
  rear-side mounting holes
• Width
  165 mm
• Rated insulation voltage Ui
  400 VAC
• Material of the latching bolt
  Brass
• Depth
  36 mm
• Manual release
  Yes
• Latching bolt bevelling, bottom
  45 °
• Thermal test current
  10 A
• Number of door leafs
  1
• Switching element
  NC contact, NO contact
• Orientation / Alignment
  right-hand model
• X-dimension of the latching bolt
  11.5 mm
• Rated impulse withstand voltage Uimp
  6 kV
Switching principle
Slow action
Safety functions
Yes
Number of safety contacts
1
Height
80 mm
Number of auxiliary contacts
1
Degree of protection
IP20
Utilisation category DC-13
2 A
Enclosure material
Light alloy die-casting
Actuating element
Roller lever H65 and bearing block B2
Permanent magnet
Ceramic oxide magnets with high coercive field strength
Ambient temperature, maximum
+70 °C
Utilisation category AC-15
2 A
With fail-safe locking system (Y/N)
Yes
