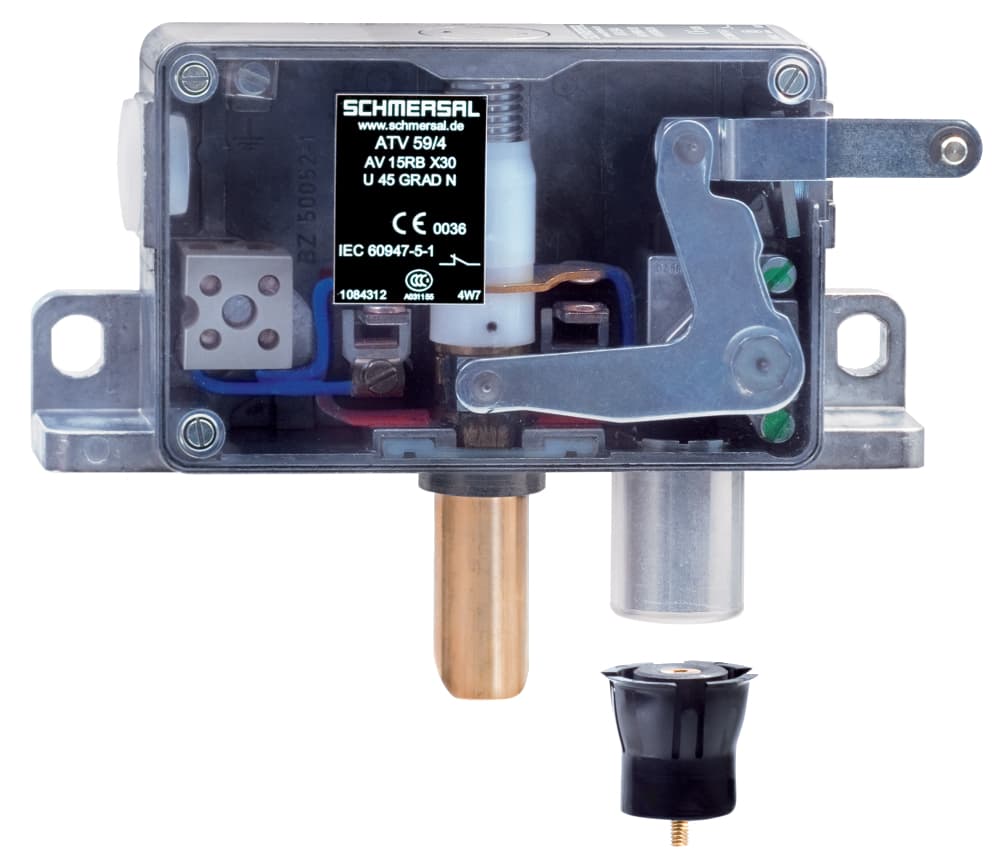

AV15RB2KX30U-GB215 Schmersal Electronic Components

Product Details

• Permanent magnet
  Ceramic oxide magnets with high coercive field strength
• Latching bolt bevelling, bottom
  45 °
• Orientation / Alignment
  right-hand model
• Material of the contacts, electrical
  Silver
• Degree of protection
  IP20
• Utilisation category AC-15
  2 A
• Material of the latching bolt
  Brass
• Cable entry
  without cable gland
• Diameter of the latching bolt
  18 mm
• Utilisation category DC-13
  2 A
• Note (Cable entry)
  Graphic representation: left version mirror image
• Enclosure material
  Light alloy die-casting
• Height
  80 mm
• Rated insulation voltage Ui
  400 VAC
• Switching element
  NC contact, NO contact
• Mounting
  rear-side mounting holes
• Number of door leafs
  1
• Note (X-dimension of the latching bolt)
  The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
• Manual release
  Yes
• With fail-safe locking system (Y/N)
  Yes
Width
165 mm
Ambient temperature, minimum
-15 °C
Switching principle
Slow action
Actuating element
Roller lever H65 and bearing block B2
X-dimension of the latching bolt
30 mm
Standards
EN 81-20, EN 81-50
Rated impulse withstand voltage Uimp
6 kV
Number of safety contacts
1
Depth
36 mm
Safety functions
Yes
Ambient temperature, maximum
+70 °C
Thermal test current
10 A
