W7476B2331Z ROSS Controls Electronic Components
Part#:W7476B2331Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

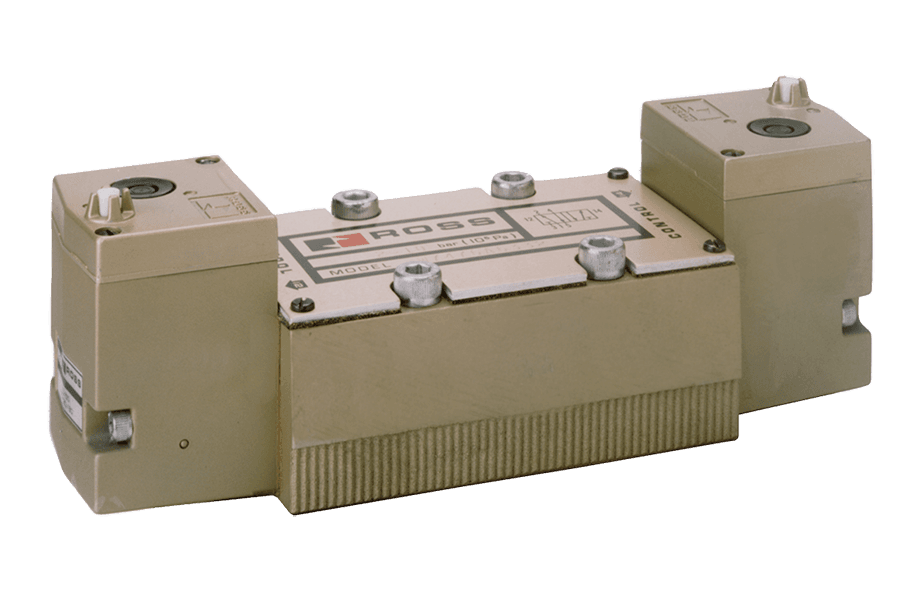

ANSI Size 1, W74 Series, 5/2 Single Solenoid Valve, Poppet, 110/120 VAC
Product Details
- Width (mm) 162
- Duty Rating Continuous Duty
- Weight (kg) 1.4
- Weight 3.0 lb (1.4 kg)
- Width 6.39 in (162 mm)
- Height 2.61 in (66 mm)
- Avg Cv 0.9
- Function 5/2-Way, Single Solenoid
- Actuation Electrical
- Default Position Normally Open
- Power Consumption 10 VA inrush, 24 VA holding on 50 or 60 Hz
- Manual Override Non-locking
- Mounting Base Mount
- Poppet/Spool Material Rubber Coated Aluminum & Stainless Steel
- Return Pneumatic
- Length (mm) 50
- Voltage 110/120 VAC
- Length 1.97 in (50 mm)
- Size 1
- Valve Type Directional Control
- Valve Standard ANSI
- Connection Hardwired
- Construction Poppet
- Pilot Type Internal/External
- Valve Body Material Cast Aluminum
- Usage Models W74
- Seal Material Buna-N
- Application General
- Height (mm) 66
- Pilot Supply Minimum Equal to or greater than inlet pressure
- Operating Pressure (bar) Vacuum to 10
- Operating Pressure Vacuum to 150 psig (10 bar)
- Fluid Media Filtered air
- Media Temperature (Celcius) 4 to 80
- Media Temperature 40 to 175 F (4 to 80 C)
- Ambient Temperature (Celcius) 4 to 50
- Ambient Temperature 40 to 120 F (4 to 50 C)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
