W7476C4336Z ROSS Controls Electronic Components
Part#:W7476C4336Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

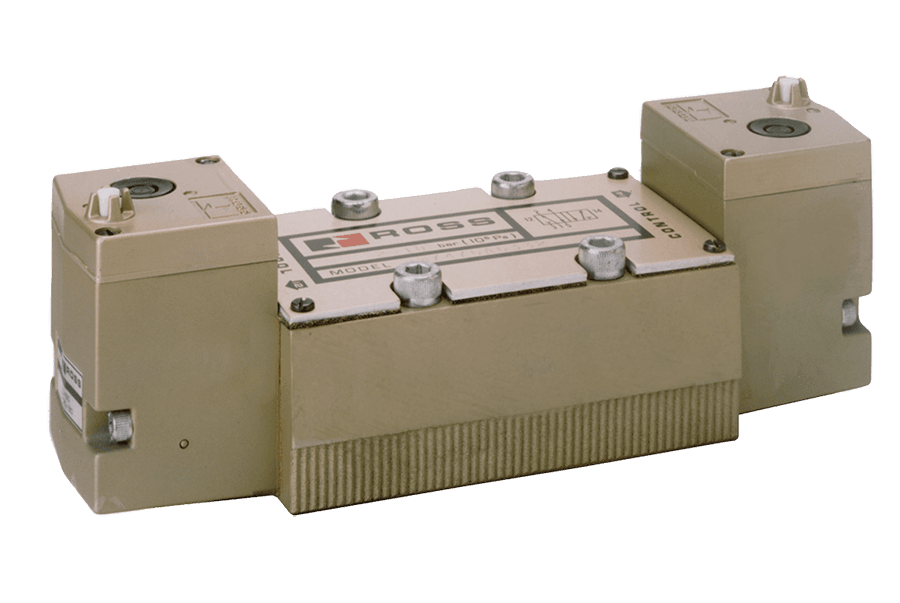

ANSI Size 4, W74 Series, 5/2 Single Solenoid Valve, High Temp, Poppet, 110/120 VAC
Product Details
- Mounting Base Mount
- Ambient Temperature (Celcius) 4 to 80
- Size 4
- Default Position Normally Open
- Valve Body Material Cast Aluminum
- Return Pneumatic
- Valve Standard ANSI
- Construction Poppet
- Poppet/Spool Material Rubber Coated Aluminum & Stainless Steel
- Actuation Electrical
- Usage Models W74
- Application High Temperature
- Media Temperature (Celcius) 4 to 105
- Length 3.46 in (88 mm)
- Connection Hardwired
- Seal Material Buna-N
- Function 5/2-Way, Single Solenoid
- Width (mm) 211
- Manual Override Non-locking
- Voltage 110/120 VAC
- Weight 5.0 lb (2.3 kg)
- Duty Rating Continuous Duty
- Ambient Temperature 40 to 175 F (4 to 80 C)
- Avg Cv 4.2
- Width 8.32 in (211 mm)
- Operating Pressure (bar) Vacuum to 10
- Operating Pressure Vacuum to 150 psig (10 bar)
- Weight (kg) 2.3
- Fluid Media Filtered air
- Pilot Supply Minimum Equal to or greater than inlet pressure
- Media Temperature 40 to 220 F (4 to 105 C)
- Power Consumption 10 VA inrush, 24 VA holding on 50 or 60 Hz
- Height (mm) 101
- Valve Type Directional Control
- Pilot Type Internal/External
- Length (mm) 88
- Height 3.96 in (101 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W7476C4336Z on Applied Automation is $389.75. Order now.
