W7017C4331Z ROSS Controls Electronic Components
Part#:W7017C4331Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

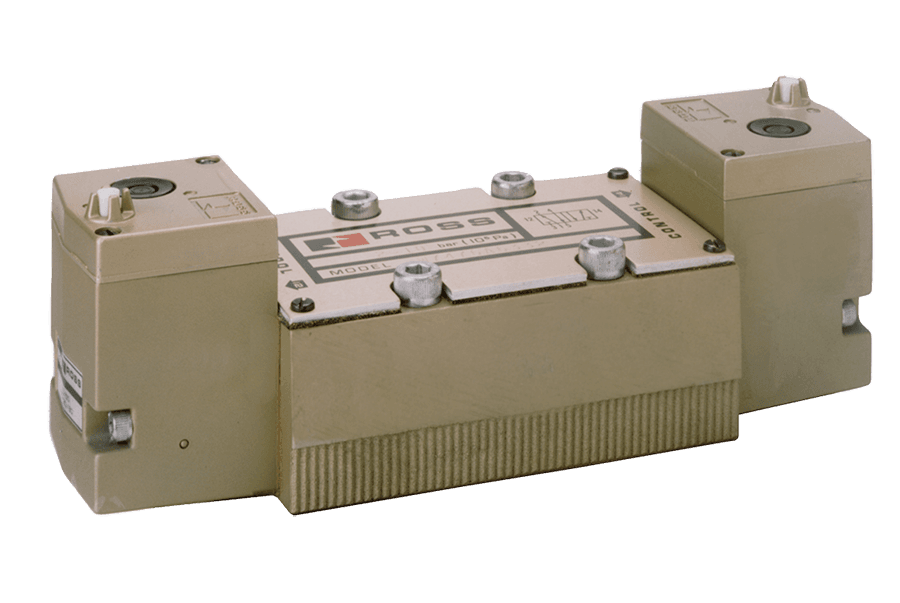

ANSI Size 4, W70 Series, 5/3 Closed Center Direct Solenoid Valve, Spool & Sleeve, 110/120 VAC
Product Details
- Operating Pressure Vacuum to 150 psig (10 bar)
- Return Detented
- Height 2.8 in (70 mm)
- Actuation Electrical
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Function 5/3-Way, Double Direct Solenoid
- Valve Standard ANSI
- Ambient Temperature (Celcius) 4 to 50
- Default Position Normally Closed
- Width 13.20 in (335 mm)
- Application General
- Duty Rating Continuous Duty
- Seal Material Buna-N
- Weight 5.8 lb (2.6 kg)
- Mounting Base Mount
- Media Temperature 40 to 175 F (4 to 80 C)
- Length (mm) 88
- Construction Spool and Sleeve
- Valve Body Material Cast Aluminum
- Height (mm) 70
- Usage Models W70
- Fluid Media Filtered air
- Size 4
- Power Consumption 140 VA inrush, 30 VA holding on 50 or 60 Hz
- Width (mm) 335
- Connection Hardwired
- Operating Pressure (bar) Vacuum to 10
- Length 3.5 in (88 mm)
- Voltage 110/120 VAC
- Center Position Closed
- Media Temperature (Celcius) 4 to 80
- Avg Cv 3.8
- Weight (kg) 2.6
- Valve Type Directional Control
- Manual Override Non-locking
- Poppet/Spool Material Stainless Steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
