W7016B2331W ROSS Controls Electronic Components
Part#:W7016B2331W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

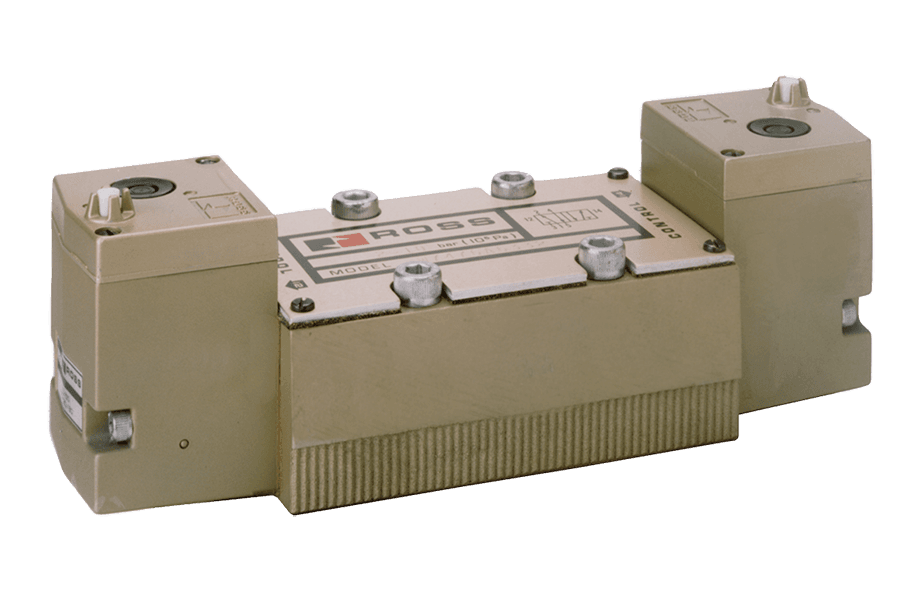

ANSI Size 1, W70 Series, 5/2 Single Direct Solenoid Valve, Spool & Sleeve, 24 VDC
Product Details
- Default Position Normally Open
- Duty Rating Continuous Duty
- Avg Cv 1.0
- Function 5/2-Way, Single Direct Solenoid
- Ambient Temperature (Celcius) 4 to 50
- Length 1.97 in (50 mm)
- Valve Type Directional Control
- Manual Override Non-locking
- Valve Body Material Cast Aluminum
- Weight 3.5 lb (1.6 kg)
- Voltage 24 VDC
- Fluid Media Filtered air
- Width 6.96 in (177 mm)
- Usage Models W70
- Media Temperature (Celcius) 4 to 80
- Length (mm) 50
- Construction Spool and Sleeve
- Power Consumption 20 watts
- Poppet/Spool Material Stainless Steel
- Weight (kg) 1.6
- Valve Standard ANSI
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Operating Pressure Vacuum to 150 psig (10 bar)
- Height (mm) 57
- Actuation Electrical
- Media Temperature 40 to 175 F (4 to 80 C)
- Size 1
- Application General
- Mounting Base Mount
- Seal Material Buna-N
- Height 2.25 in (57 mm)
- Return Spring
- Connection Hardwired
- Operating Pressure (bar) Vacuum to 10
- Width (mm) 177
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W7016B2331W on Applied Automation is $226.25. Order now.
