W7017B2332Z ROSS Controls Electronic Components
Part#:W7017B2332Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

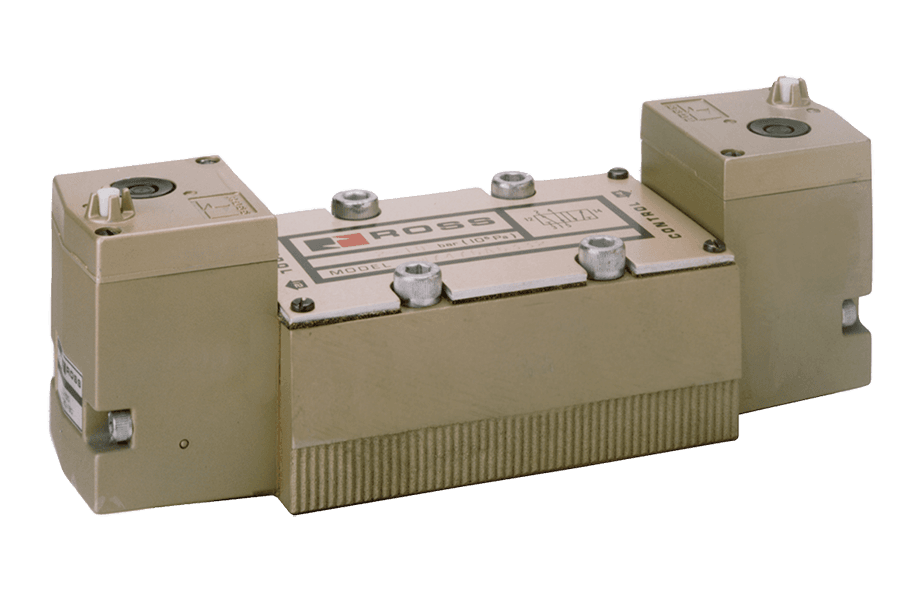

ANSI Size 1, W70 Series, 5/3 Open Center Direct Solenoid Valve, Spool & Sleeve, 110/120 VAC
Product Details
- Manual Override Non-locking
- Valve Body Material Cast Aluminum
- Height 2.25 in (57 mm)
- Application General
- Media Temperature (Celcius) 4 to 80
- Height (mm) 57
- Mounting Base Mount
- Operating Pressure Vacuum to 150 psig (10 bar)
- Power Consumption 140 VA inrush, 30 VA holding on 50 or 60 Hz
- Width (mm) 236
- Default Position Normally Open
- Operating Pressure (bar) Vacuum to 10
- Voltage 110/120 VAC
- Usage Models W70
- Media Temperature 40 to 175 F (4 to 80 C)
- Size 1
- Weight (kg) 2
- Connection Hardwired
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Avg Cv 1.0
- Weight 4.5 lb (2.0 kg)
- Valve Type Directional Control
- Poppet/Spool Material Stainless Steel
- Length 1.97 in (50 mm)
- Construction Spool and Sleeve
- Duty Rating Continuous Duty
- Return Detented
- Width 9.30 in (236 mm)
- Valve Standard ANSI
- Fluid Media Filtered air
- Center Position Open
- Function 5/3-Way, Double Direct Solenoid
- Actuation Electrical
- Ambient Temperature (Celcius) 4 to 50
- Seal Material Buna-N
- Length (mm) 50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
