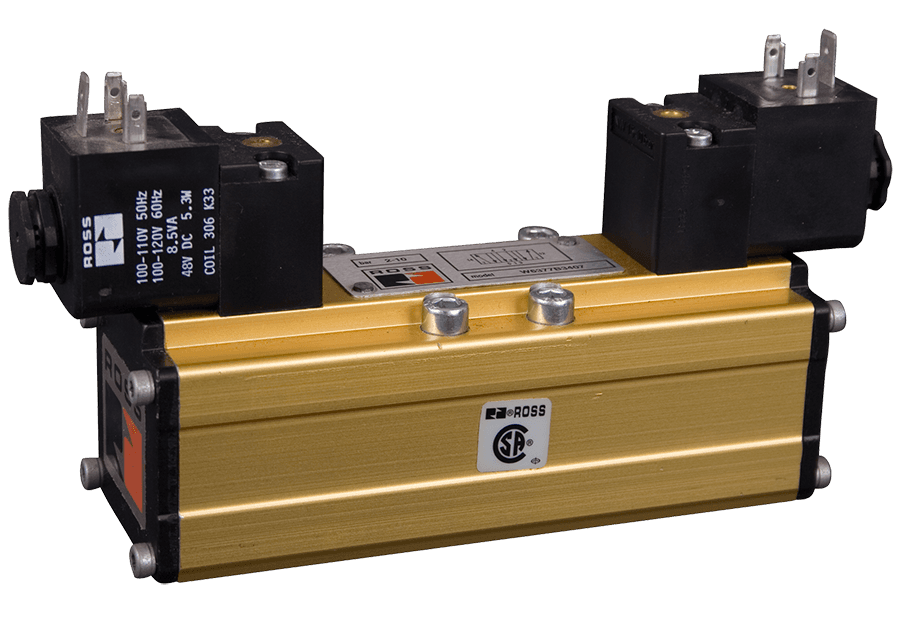

W6077B3401W ROSS Controls Electronic Components
Part#:W6077B3401W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
ISO 5599-1 Valve, Size 2, W60 Series, 5/3 Double Closed Center, Solenoid Controlled, Spool & Sleeve, 24 VDC
Product Details
- Series W60
- Fluid Media Filtered Air
- Valve Standard ISO 5599-1
- Power Consumption 5.8 watts nominal, 6.5 watts maximum
- Weight 2.8 lb (1.3 kg)
- Ambient Temperature 40 to 175 F (4 to 80 C)
- Construction Spool and Sleeve
- Duty Rating Continuous Duty
- Application Standard Temperature
- Operating Pressure (bar) Vacuum to 10
- Size 2
- Ambient Temperature (Celsius) 4 to 80
- Mounting Base Mount
- Default Position Normally Closed
- Width (mm) 196
- Valve Type Directional Control
- Operating Pressure Vacuum to 150 psig (10 bar)
- Avg. Cv 1.9
- Media Temperature 40 to 175 F (4 to 80 C)
- Pilot Supply Minimum Must be ≥ inlet pressure
- Length (mm) 54
- Connection EN 175301-803 Form A
- Media Temperature (Celsius) 4 to 80
- Voltage 24 VDC
- Seal Material Buna-N
- Poppet/Spool Material Stainless Steel
- Center Position Closed
- Actuation Electrical
- Valve Body Material Bar Stock Aluminum
- Return Detented
- Manual Override Non-locking
- Pilot Type Internal/External
- Length 2.1 in (54 mm)
- Function 5/3 Double Solenoid
- Width 7.7 in (196 mm)
- Weight (kg) 1.3
- Height (mm) 119
- Height 4.7 in (119 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W6077B3401W on Applied Automation is $353.00. Order now.
