MD452K2B52B ROSS Controls Electronic Components

Name: MD452K2B52B
Brand: ROSS Controls
Price: 162 USD
Availability: BackOrder

Part#:MD452K2B52B

Manufacturer:ROSS Controls

Category:Electronic Components

Product Lifecycle:Active

Product description

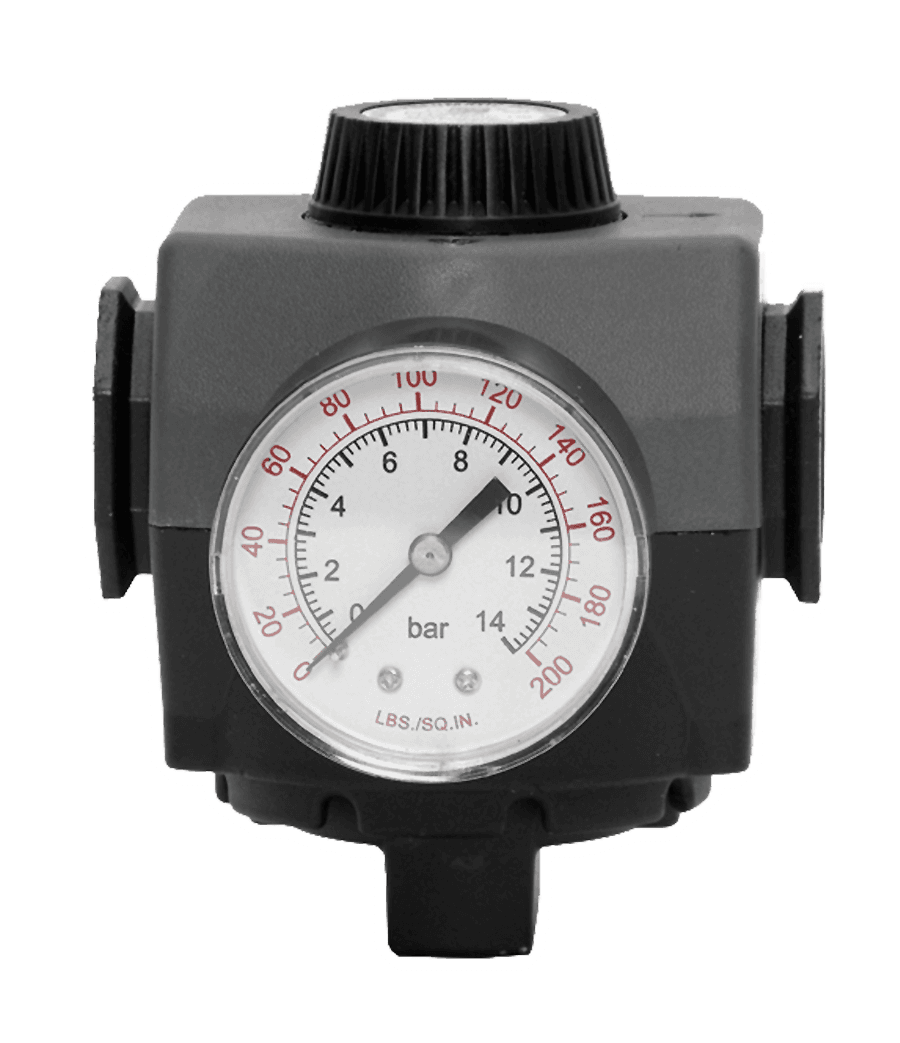

Remote Pilot Regulator MD4 Series, Diaphragm, Non-Relieving, Remote Pilot, Standard Flow, 0-250 (0-17.2) Pressure Range, 0-200 (0-13.8) Gauge, Port 1 Threaded 3/4", Port 2 Threaded 3/4", NPT

Product Details

ADJUSTMENT
Knob
MEDIA TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
GAUGE psig (bar)
0 - 200 (0 13.8)
PORT TYPE
Threaded Ports
AMBIENT TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
PORT SIZE
3/4
FLOW OPTION
Standard
RELIEVING
Non-Relieving
CONSTRUCTION
Diaphragm
PORT THREAD
NPT
PILOT
Remote
REGULATED PRESSURE RANGE psig (bar)
0 - 250 (0 - 17.2)
MOUNTING
Modular
MAXIMUM FLOW
190 scfm
FLOW MEDIA
Compressed Air
Weight
2.2 lbs (1.0 kg)
INLET PRESSURE RANGE
Up to 300 psig (20.7 bar)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MD452K2B52B on Applied Automation is $162.00. Order now.
