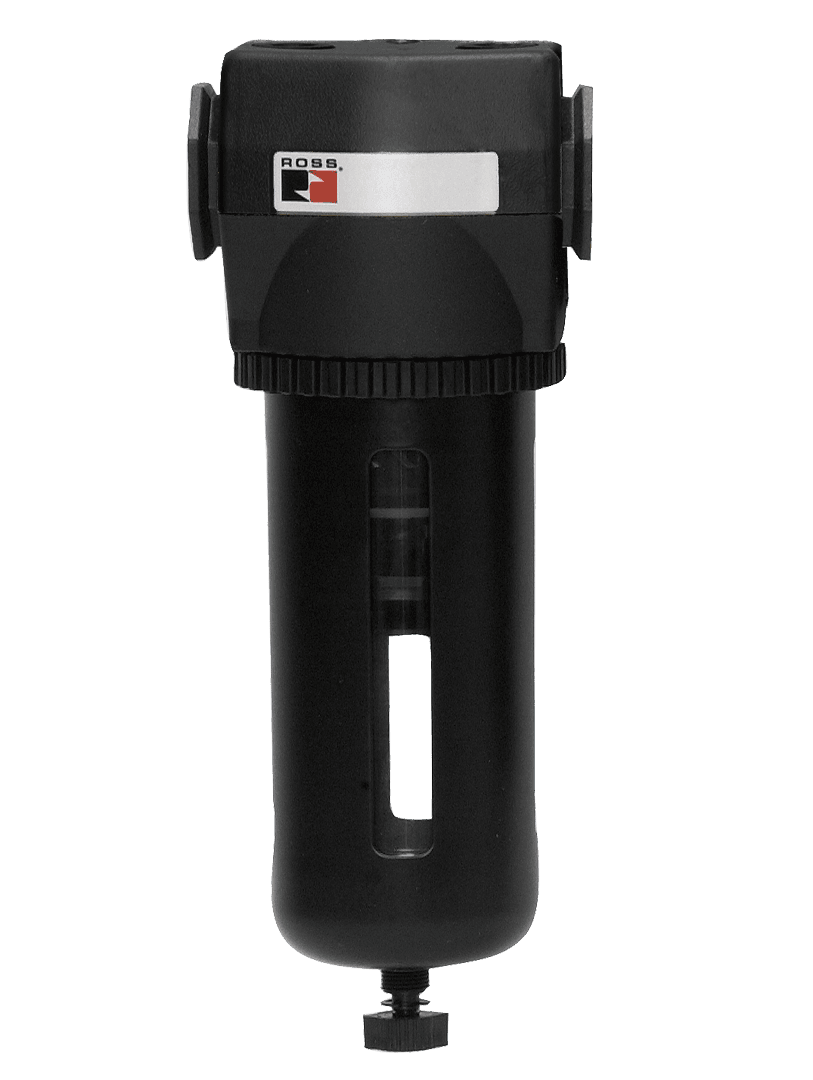

MD450MBMB32E ROSS Controls Electronic Components

Name: MD450MBMB32E
Brand: ROSS Controls

Part#:MD450MBMB32E

Manufacturer:ROSS Controls

Category:Electronic Components

Product Lifecycle:Active

Product description

Filter MD4 Series, Manual Drain, Metal Bowl, 5 µm Polyethylene Filter, Large Dual Face w/ N.O. Reed Switch, Threaded Ports 3/8" NPT

Product Details

PORT TYPE
Threaded Ports
MEDIA TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
MOUNTING
Modular
MAXIMUM FLOW
130 scfm
BOWL TYPE
Metal
DRAIN TYPE
Manual
FILTER MATERIAL
Polyethylene
AMBIENT TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
PORT SIZE
3/8
PORT THREAD
NPT
FILTER TYPE
5 µm
INLET PRESSURE RANGE
Up to 200 psig (14 bar)
GAUGE
Large Dual Face w/ N.O. Reed Switch
FLOW MEDIA
Compressed Air
Weight
2.13 lbs (0.97 kg)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MD450MBMB32E Related Documents

InstallationInstructions.pdf ProductCatalog.pdf
