MD450MALBC2L ROSS Controls Electronic Components

Name: MD450MALBC2L
Brand: ROSS Controls

Part#:MD450MALBC2L

Manufacturer:ROSS Controls

Category:Electronic Components

Product Lifecycle:Active

Product description

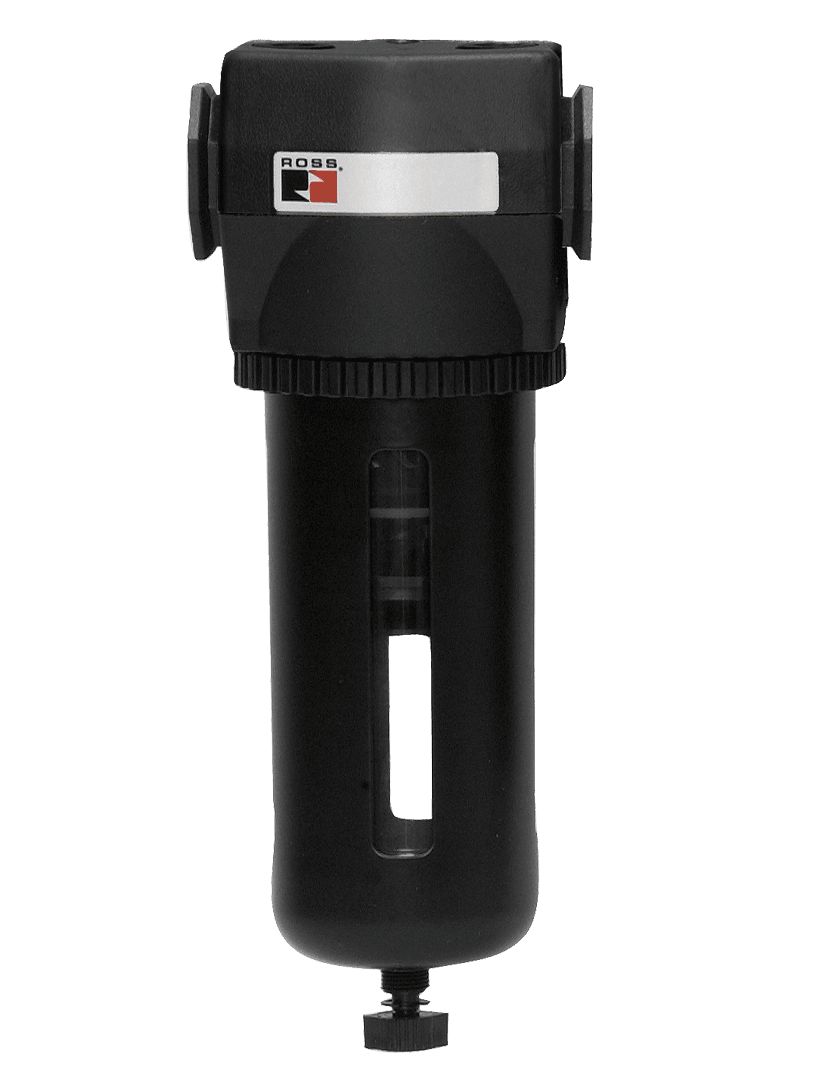

Filter MD4 Series, Internal Float Drain, Metal Bowl, 40 µm Polyethylene Filter, Large Dual Face Gauge, Threaded Ports 3/8" BSPP

Product Details

DRAIN TYPE
Internal Float
FILTER MATERIAL
Sintered Bronze
AMBIENT TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
MEDIA TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
INLET PRESSURE RANGE
Up to 200 psig (14 bar)
MOUNTING
Modular
Weight
2.13 lbs (0.97 kg)
GAUGE
Large Dual Face Gauge
FILTER TYPE
40 µm
PORT SIZE
3/8
FLOW MEDIA
Compressed Air
BOWL TYPE
Metal
PORT THREAD
BSPP
PORT TYPE
Threaded Ports
MAXIMUM FLOW
130 scfm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MD450MALBC2L Related Documents

InstallationInstructions.pdf ProductCatalog.pdf
