D9576K4002Z ROSS Controls Electronic Components
Part#:D9576K4002Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

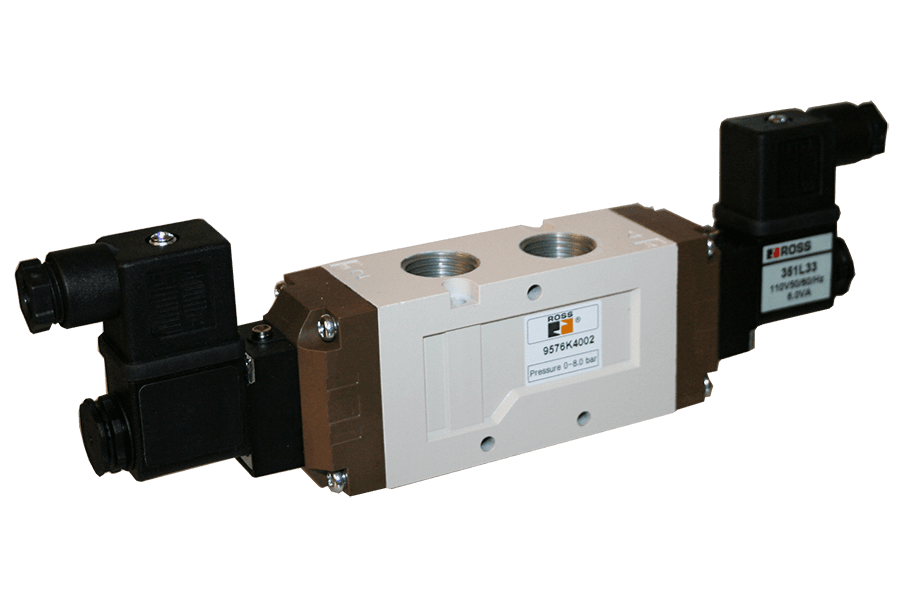

95 Series 5/2 Double Solenoid Valve, Normally Open, Ports (In-Out) G1/2", 110/120 VAC
Product Details
- Return Detented
- Voltage 110/120 VAC
- Length (mm) 36.5
- Ambient Temperature 41 to 140 F (5 to 60 C)
- Default Position Normally Open
- Application General
- Width 9.31 in (236.5 mm)
- Mounting Inline/Manifold
- Media Temperature 41 to 140 F (5 to 60 C)
- Valve Body Material Die Cast Aluminum
- Poppet/Spool Material Aluminum
- Power Consumption 3.6 VA holding on 50/60 Hz
- Seal Material Buna-N, Viton
- Height 2.91 in (74.0 mm)
- Ambient Temperature (Celcius) 5 to 60
- Media Temperature (Celcius) 5 to 60
- Valve Type Directional Control
- Connection EN 175301-803 Industrial Form B
- Avg Cv 4.5
- Function 5/2 Double Solenoid
- Manual Override Non-locking
- Fluid Media Filtered Air
- Actuation Electrical
- Thread Type G
- Outlet Pipe Size 1/2"
- Width (mm) 236.5
- Operating Pressure 22.5 to 150 psig (1.5 to 10 bar)
- Construction Spool
- Exhaust Pipe Size 1/2"
- Weight 2.04 lb (0.93 kg)
- Operating Pressure (bar) 1.5 to 10
- Series 95
- Inlet Pipe Size 1/2"
- Height (mm) 74
- Duty Rating Continuous Duty
- Pilot Supply Minimum equal to or greater than inlet pressure
- Pilot Type Internal
- Length 1.43 in (36.5 mm)
- Weight (kg) 0.93
