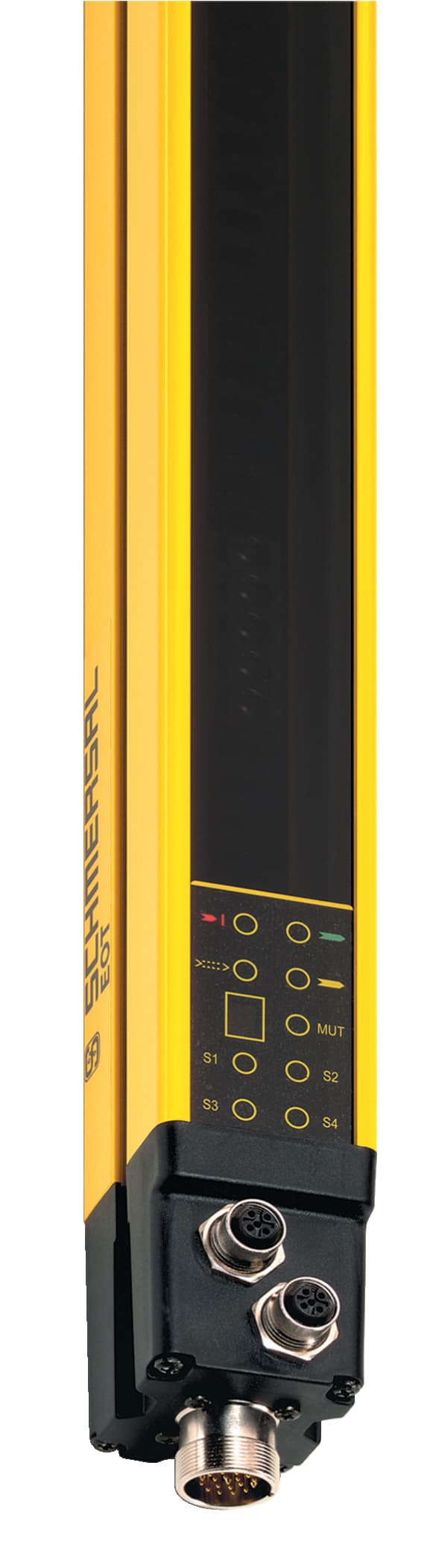

SLG440COM-ER-0500-02 Schmersal Safety Light Curtains

Product Details

• Enclosure material
  Aluminium
• Terminal, Connector, Transmitter
  Connector plug M12, 4-pole
• Ambient temperature, maximum
  +50 °C
• Electrical power consumption of the transmitter, maximum
  5 W
• Height of the protection field
  500 mm
• Ambient temperature, minimum
  -10 °C
• Standards
  EN 61496-1, EN 61496-2, CLC/TS 61496-2
• Range, protection field, minimum
  300 mm
• Restart interlock (manual reset)
  Yes
• Length of cable
  100 m
• Width of sensor
  27.8 mm
• Protection rating
  III
• Switching voltage OSSD, HIGH signal
  24 V
• Reaction time, maximum
  10 ms
• Detection ability for test bodies at v = 1.6 m/s
  500 mm
• Range, protection field, maximum
  12,000 mm
• Terminal connector, Recipient
  Connector plug M12, 5-pole
• Height of sensor
  571 mm
• Storage and transport temperature, maximum
  +70 °C
• Electrical power consumption of the receiver, maximum
  10 W
Output current, (fail-safe output), maximum
0.25 A
Degree of protection
IP67 to EN 60529
Voltage type
DC (direct current)
Integral System Diagnostics
Yes
Gross weight
920 g
Number of beams
2
Wave length of the sensor
880 nm
Length of sensor
33 mm
Versions
p-type
Integral System Diagnostics, status
Yes
Terminal Connector
Connector
Storage and transport temperature, minimum
-25 °C
Number of fail-safe digital outputs
2
