D3126A6007 ROSS Controls Electronic Components
Part#:D3126A6007
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

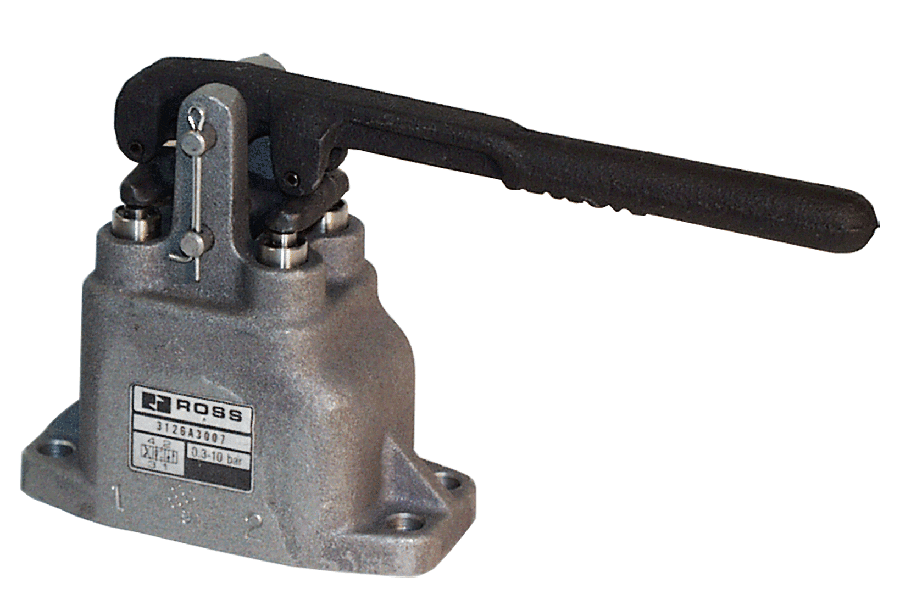

31 Series, 4/3 Manual Horizontal Hand Lever Valve, Closed Center, Detented, Port (In-Out) G1", Port (Exhaust) G1-1/4"
Product Details
- Valve Type Directional Control
- Default Position Normally Closed
- Inlet Pipe Size 1"
- Height 13.5 in (343 mm)
- Mounting Inline
- Media Temperature -40 to 175 F (-40 to 80 C)
- Cv (1-4) 10
- Height (mm) 343
- Construction Poppet
- Return Detented
- Cv (2-3) 7.5
- Exhaust Pipe Size 1-1/4"
- Valve Body Material Cast Aluminum
- Center Position Closed
- Function 4/3
- Width (mm) 202
- Application General
- Ambient Temperature (Celsius) -40 to 80
- Length (mm) 105
- Weight (kg) 4.5
- Operating Pressure (bar) 0.3 to 10
- Media Temperature (Celsius) -40 to 80
- Weight 10.0 lb (4.5 kg)
- Series 31
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Width 7.94 in (202 mm)
- Fluid Media Filtered Air
- Lever Position Horizontal
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Outlet Pipe Size 1"
- Length 4.13 in (105 mm)
- Actuation Manual Hand Lever
- Thread Type G
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D3126A6007 on Applied Automation is $1,086.25. Order now.
