D3126A4014 ROSS Controls Electronic Components
Part#:D3126A4014
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

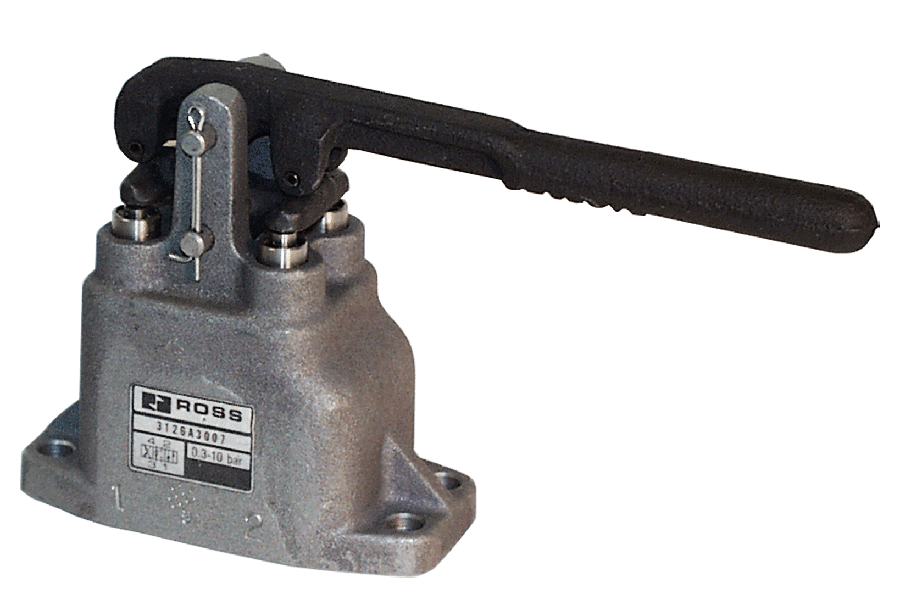

31 Series, 4/3 Manual Vertical Hand Lever Valve, Closed Center, Spring Return, Port (In-Out) G1/2", Port (Exhaust) G3/4"
Product Details
- Return Spring
- Cv (2-3) 2.3
- Valve Type Directional Control
- Outlet Pipe Size 1/2"
- Construction Poppet
- Application General
- Actuation Manual Hand Lever
- Media Temperature -40 to 175 F (-40 to 80 C)
- Weight (kg) 2.2
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Lever Position Vertical
- Valve Body Material Cast Aluminum
- Center Position Closed
- Inlet Pipe Size 1/2"
- Fluid Media Filtered Air
- Thread Type G
- Length (mm) 70
- Operating Pressure (bar) 0.3 to 10
- Cv (1-4) 2.8
- Function 4/3
- Width (mm) 143
- Mounting Inline
- Ambient Temperature (Celsius) -40 to 80
- Width 5.63 in (143 mm)
- Default Position Normally Closed
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Height (mm) 344
- Series 31
- Media Temperature (Celsius) -40 to 80
- Weight 4.8 lb (2.2 kg)
- Length 2.75 in (70 mm)
- Height 13.5 in (344 mm)
- Exhaust Pipe Size 3/4"
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D3126A4014 on Applied Automation is $819.25. Order now.
