D3126A3009 ROSS Controls Electronic Components
Part#:D3126A3009
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

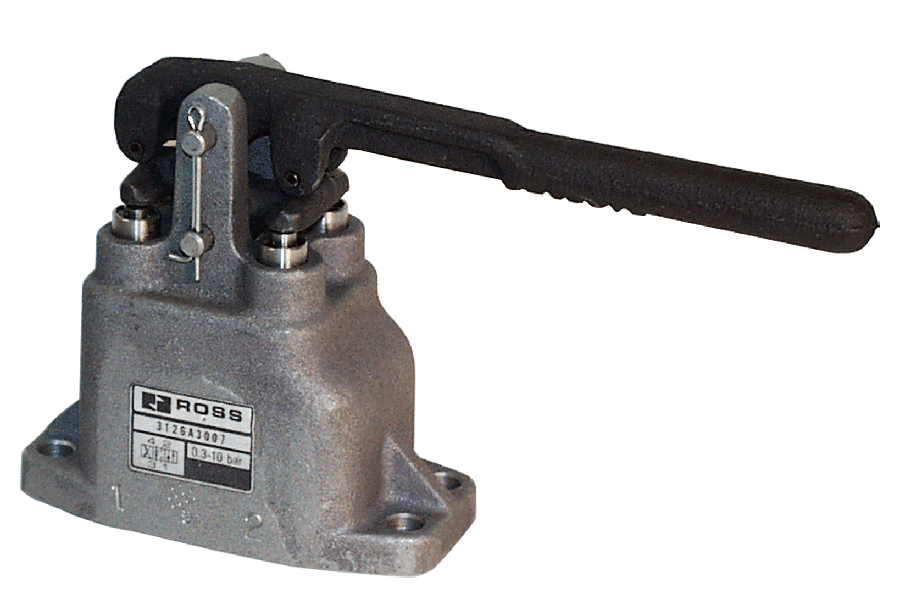

31 Series, 4/3 Manual Vertical Hand Lever Valve, Open Center, Detented, Port (In-Out) G3/8", Port (Exhaust) G1/2"
Product Details
- Mounting Inline
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Height (mm) 273
- Default Position Normally Open
- Operating Pressure (bar) 0.3 to 10
- Outlet Pipe Size 3/8"
- Width (mm) 110
- Cv (2-3) 1.4
- Valve Body Material Cast Aluminum
- Media Temperature (Celsius) -40 to 80
- Valve Type Directional Control
- Center Position Open
- Return Detented
- Length 2.12 in (54 mm)
- Width 4.31 in (110 mm)
- Series 31
- Exhaust Pipe Size 1/2"
- Function 4/3
- Construction Poppet
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Inlet Pipe Size 3/8"
- Actuation Manual Hand Lever
- Ambient Temperature (Celsius) -40 to 80
- Weight 2.4 lb (1.1 kg)
- Fluid Media Filtered Air
- Thread Type G
- Weight (kg) 1.1
- Cv (1-4) 1.7
- Length (mm) 54
- Media Temperature -40 to 175 F (-40 to 80 C)
- Height 10.8 in (2.73 mm)
- Application General
- Lever Position Vertical
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D3126A3009 on Applied Automation is $419.00. Order now.
