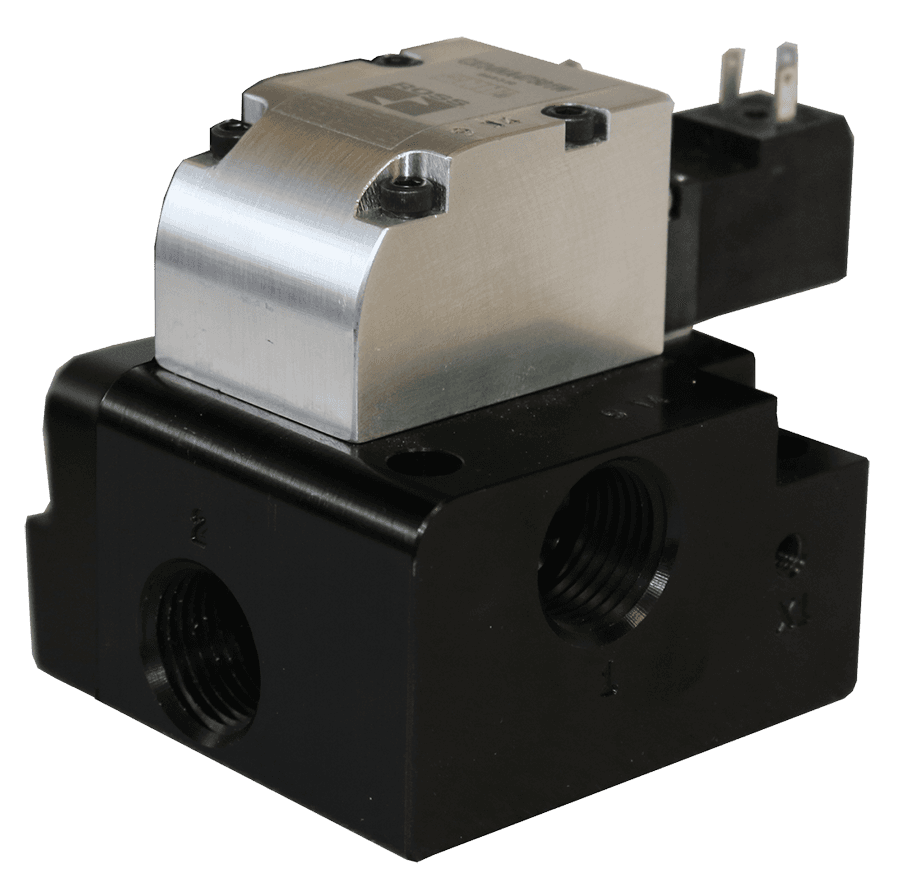

CP20DB07101Z ROSS Controls Electronic Components

Product Details

• Series
  CP
• Duty Rating
  Continuous Duty
• Length
  6.75 in (171.5 mm)
• Thread Type
  G
• Avg Cv
  108
• Pilot Supply Minimum
  equal to or greater than inlet pressure
• Width (mm)
  150.4
• Valve Type
  Directional Control
• Power Consumption
  5.8 watts nominal, 6.5 watts maximum
• Length (mm
  171.5
• Height
  10.59 in (268.9 mm)
• Inlet Pipe Size
  2-1/2"
• Pilot Type
  Internal/External
• Operating Pressure (bar)
  vacuum to 10
• Voltage
  110/120 VAC
• Actuation
  Electrical
• Ambient Temperature (Celsius)
  4 to 50
• Weight (kg)
  8.9
• Seal Material
  Buna-N
• Application
  General
Ambient Temperature
40 to 120 F (4 to 50 C)
Height (mm
268.9
Default Position
Normally Open
Function
2/2 Single Solenoid
Connection
EN 175301-803 Form A
Media Temperature (Celsius)
4 to 80
Poppet/Spool Material
Acetal & Stainless Steel
Construction
Poppet
Media Temperature
40 to 175 F (4 to 80 C)
Weight
19.5 lb (8.9 kg)
Return
Spring Assisted Air
Mounting
Base Mounted
Operating Pressure
Vacuum to 145 psig (vacuum to 10 bar)
Valve Body Material
Cast Aluminum
Outlet Pipe Size
2-1/2"
Manual Override
Locking
Fluid Media
Filtered Air
Width
5.92 in (150.4 mm)
