8077C4351Z ROSS Controls Electronic Components
Part#:8077C4351Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

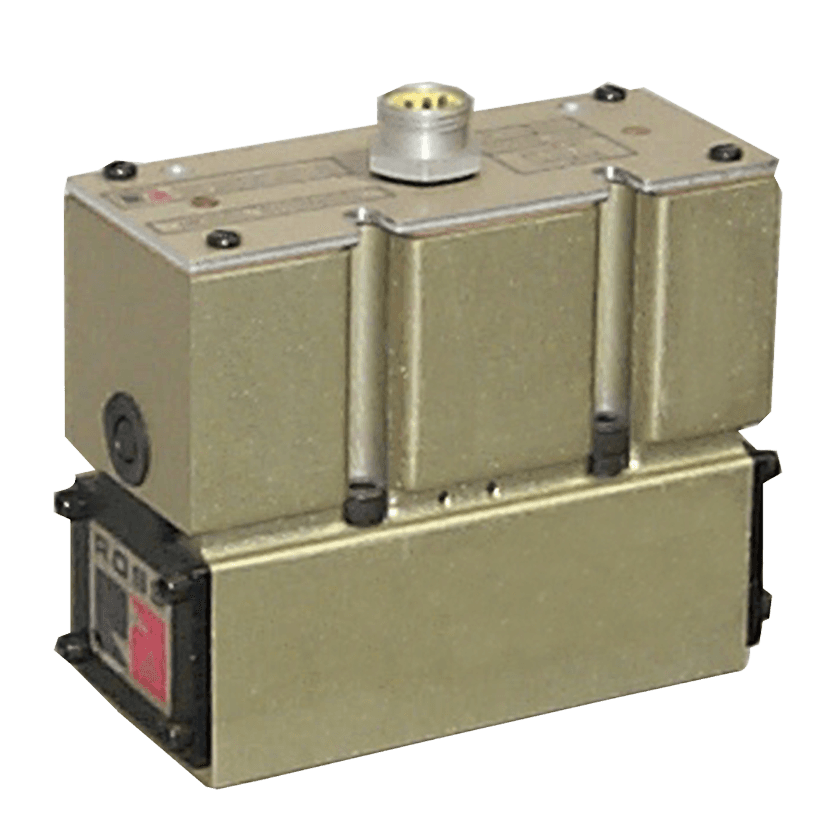

SAE Size 250, 80 Series, 5/3 Double Solenoid Valve, Closed Center, Spool & Sleeve, Hardwire, 110/120 VAC
Product Details
- Mounting Base Mounted
- Operating Pressure Vacuum to 150 psig (10 bar)
- Return Detented
- Length 2.6 in (65 mm)
- Pilot Type Internal/External
- Pilot Supply Minimum equal to or greater than inlet pressure
- Function 5/3 Double Solenoid
- Weight 7.0 lb (3.2 kg)
- Application General
- Media Temperature (Celcius) 4 to 80
- Seal Material Buna-N
- Width 6.40 in (160 mm)
- Series 80
- Fluid Media Filtered air
- Center Position Closed Center
- Width (mm) 160
- Voltage 110/120 VAC
- Media Temperature 40 to 175 F (4 to 80 C)
- Power Consumption 8 VA inrush, 6 VA holding on 50/60 Hz
- Construction Spool & Sleeve
- Valve Body Material Cast Aluminum
- Size 250
- Manual Override Non-locking
- Ambient Temperature (Celcius) 4 to 50
- Connection Hardwired
- Weight (kg) 3.2
- Valve Type Directional Control
- Operating Pressure (bar) Vacuum to 10
- Height (mm) 142
- Length (mm) 65
- Actuation Electrical
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Poppet/Spool Material Stainless Steel
- Height 5.6 in (142 mm)
- Valve Standard SAE
- Duty Rating Continuous Duty
- Default Position Normally Closed
- Avg Cv 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
