3126A4010 ROSS Controls Electronic Components
Part#:3126A4010
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

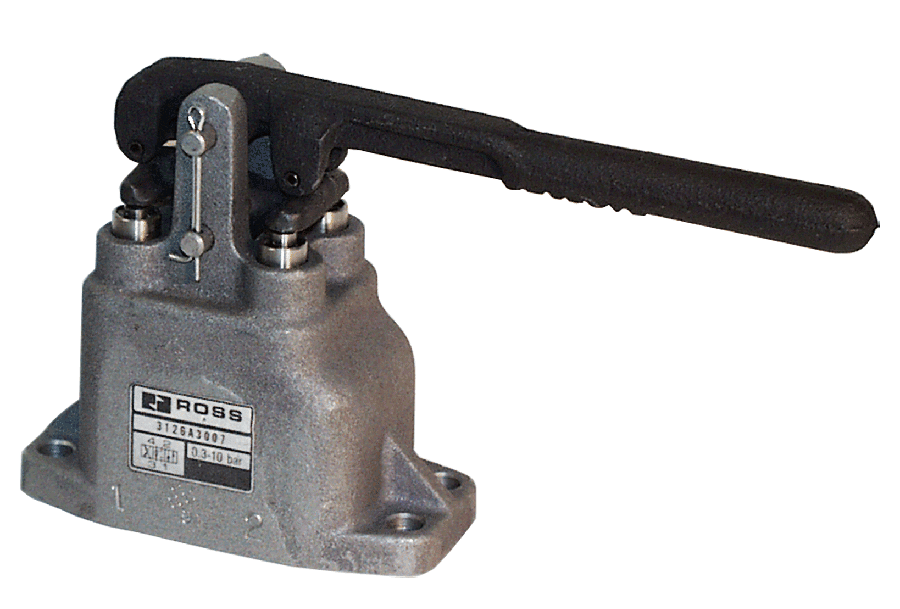

31 Series, 4/3 Manual Horizontal Hand Lever Valve, Open Center, Detented, Port (In-Out) 1/2", NPT, Port (Exhaust) 3/4" NPT
Product Details
- Height 5.63 in (143 mm)
- Weight 3.8 lb (1.7 kg)
- Height (mm) 143
- Weight (kg) 1.7
- Width (mm) 143
- Outlet Pipe Size 1/2"
- Inlet Pipe Size 1/2"
- Width 5.63 in (143 mm)
- Exhaust Pipe Size 3/4"
- Function 4/3
- Lever Position Horizontal
- Length (mm) 70
- Media Temperature -40 to 175 F (-40 to 80 C)
- Media Temperature (Celsius) -40 to 80
- Length 2.75 in (70 mm)
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Ambient Temperature (Celsius) -40 to 80
- Cv (2-3) 2.3
- Return Detented
- Series 31
- Actuation Manual Hand Lever
- Cv (1-4) 2.8
- Valve Body Material Cast Aluminum
- Operating Pressure (bar) 0.3 to 10
- Center Position Open
- Thread Type NPT
- Valve Type Directional Control
- Construction Poppet
- Default Position Normally Open
- Mounting Inline
- Application General
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Fluid Media Filtered Air
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
