3126A3014 ROSS Controls Electronic Components
Part#:3126A3014
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

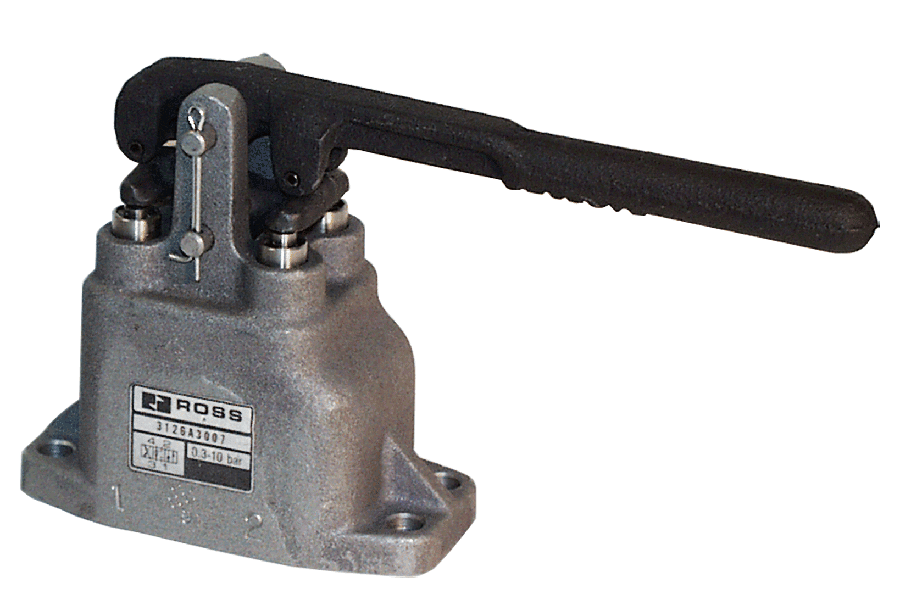

31 Series, 4/3 Manual Vertical Hand Lever Valve, Closed Center, Spring Return, Port (In-Out) 3/8", NPT, Port (Exhaust) 1/2" NPT
Product Details
- Height (mm) 273
- Weight (kg) 1.1
- Weight 2.4 lb (1.1 kg)
- Height 10.8 in (2.73 mm)
- Function 4/3
- Width (mm) 110
- Width 4.31 in (110 mm)
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Ambient Temperature (Celsius) -40 to 80
- Media Temperature (Celsius) -40 to 80
- Media Temperature -40 to 175 F (-40 to 80 C)
- Inlet Pipe Size 3/8"
- Exhaust Pipe Size 1/2"
- Outlet Pipe Size 3/8"
- Center Position Closed
- Default Position Normally Closed
- Series 31
- Valve Body Material Cast Aluminum
- Operating Pressure (bar) 0.3 to 10
- Actuation Manual Hand Lever
- Length (mm) 54
- Lever Position Vertical
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Length 2.12 in (54 mm)
- Construction Poppet
- Mounting Inline
- Application General
- Cv (2-3) 1.4
- Cv (1-4) 1.7
- Thread Type NPT
- Return Spring
- Fluid Media Filtered Air
- Valve Type Directional Control
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 3126A3014 on Applied Automation is $723.75. Order now.
