3126A3013 ROSS Controls Electronic Components
Part#:3126A3013
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

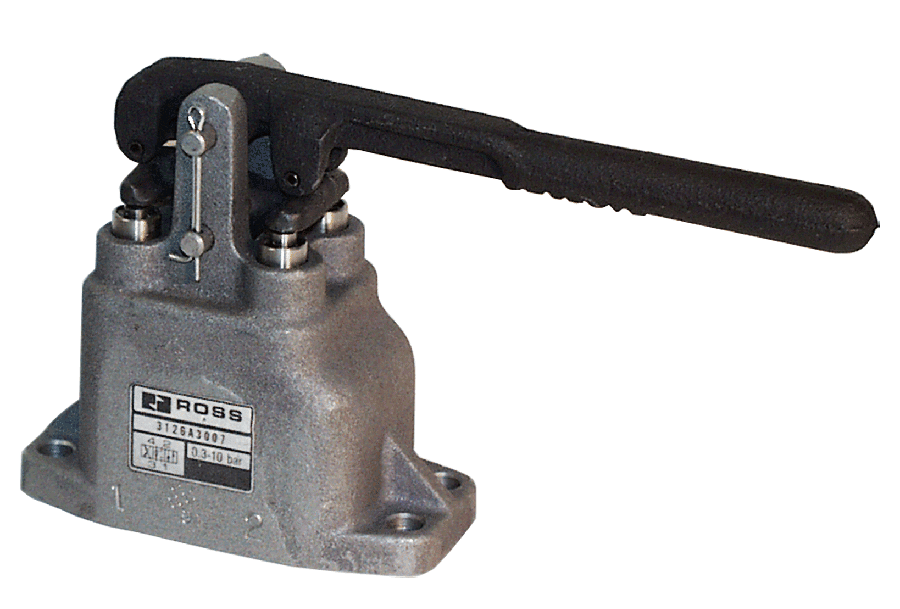

31 Series, 4/3 Manual Vertical Hand Lever Valve, Closed Center, Detented, Port (In-Out) 3/8", NPT, Port (Exhaust) 1/2" NPT
Product Details
- Fluid Media Filtered Air
- Default Position Normally Closed
- Width (mm) 110
- Mounting Inline
- Lever Position Vertical
- Media Temperature -40 to 175 F (-40 to 80 C)
- Cv (2-3) 1.4
- Center Position Closed
- Width 4.31 in (110 mm)
- Operating Pressure (bar) 0.3 to 10
- Outlet Pipe Size 3/8"
- Weight 2.4 lb (1.1 kg)
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Valve Body Material Cast Aluminum
- Exhaust Pipe Size 1/2"
- Height 10.8 in (2.73 mm)
- Valve Type Directional Control
- Length 2.12 in (54 mm)
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Media Temperature (Celsius) -40 to 80
- Application General
- Series 31
- Weight (kg) 1.1
- Construction Poppet
- Return Detented
- Ambient Temperature (Celsius) -40 to 80
- Thread Type NPT
- Length (mm) 54
- Inlet Pipe Size 3/8"
- Function 4/3
- Cv (1-4) 1.7
- Actuation Manual Hand Lever
- Height (mm) 273
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 3126A3013 on Applied Automation is $639.25. Order now.
