3126A3010 ROSS Controls Electronic Components
Part#:3126A3010
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

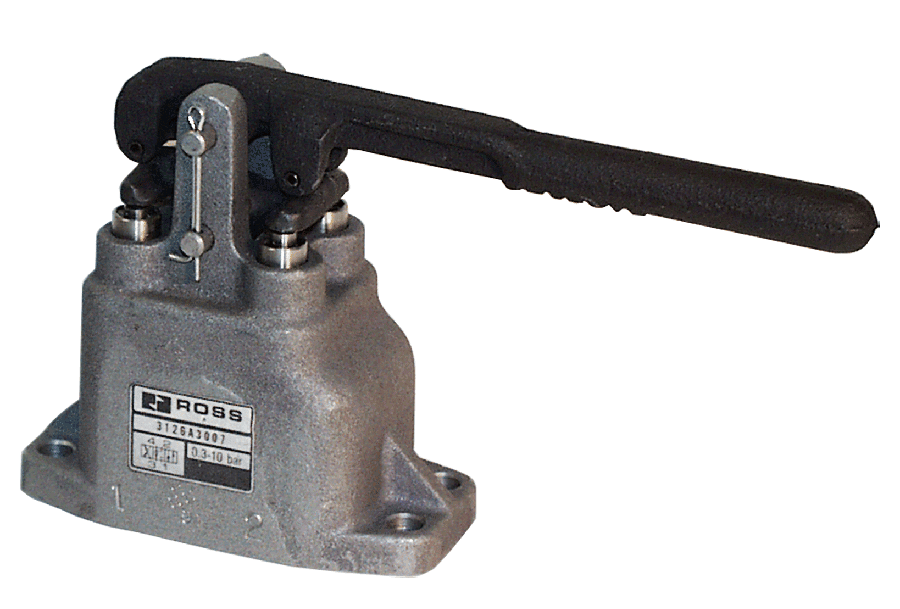

31 Series, 4/3 Manual Horizontal Hand Lever Valve, Open Center, Detented, Port (In-Out) 3/8", NPT, Port (Exhaust) 1/2" NPT
Product Details
- Thread Type NPT
- Valve Body Material Cast Aluminum
- Width 4.31 in (110 mm)
- Width (mm) 110
- Valve Type Directional Control
- Length 2.12 in (54 mm)
- Media Temperature -40 to 175 F (-40 to 80 C)
- Cv (2-3) 1.4
- Length (mm) 54
- Height 4.31 in (110 mm)
- Application General
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Outlet Pipe Size 3/8"
- Weight (kg) 0.9
- Cv (1-4) 1.7
- Actuation Manual Hand Lever
- Function 4/3
- Default Position Normally Open
- Operating Pressure (bar) 0.3 to 10
- Exhaust Pipe Size 1/2"
- Weight 2.0 lb (0.9 kg)
- Fluid Media Filtered Air
- Series 31
- Mounting Inline
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Height (mm) 110
- Center Position Open
- Return Detented
- Ambient Temperature (Celsius) -40 to 80
- Lever Position Horizontal
- Construction Poppet
- Inlet Pipe Size 3/8"
- Media Temperature (Celsius) -40 to 80
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
