3126A3007 ROSS Controls Electronic Components
Part#:3126A3007
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

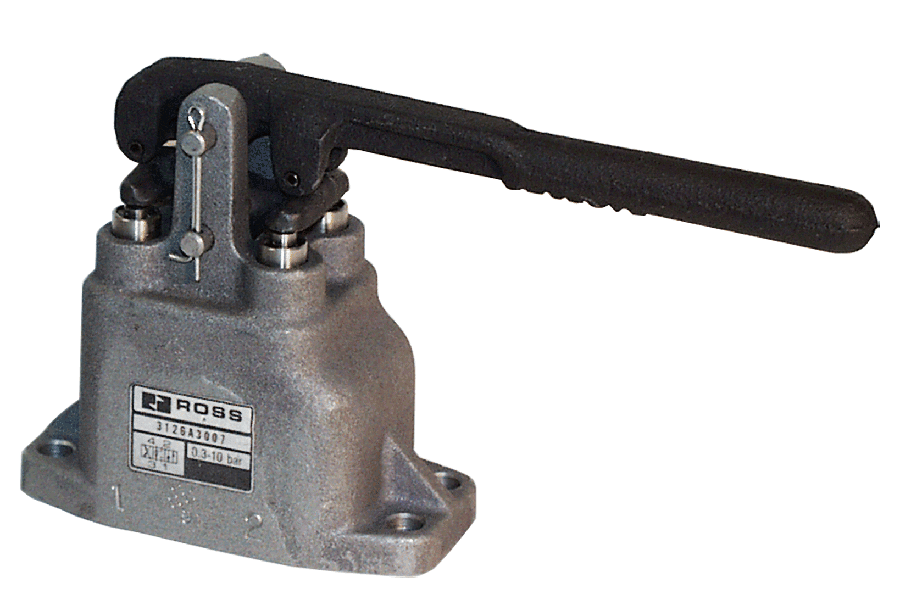

31 Series, 4/3 Manual Horizontal Hand Lever Valve, Open Center, Detented, Port (In-Out) 3/8", NPT, Port (Exhaust) 1/2" NPT
Product Details
- Cv (2-3) 1.4
- Actuation Manual Hand Lever
- Height (mm) 110
- Center Position Open
- Return Detented
- Ambient Temperature (Celsius) -40 to 80
- Function 4/3
- Thread Type NPT
- Inlet Pipe Size 3/8"
- Exhaust Pipe Size 1/2"
- Lever Position Horizontal
- Mounting Inline
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Media Temperature (Celsius) -40 to 80
- Weight (kg) 0.9
- Length (mm) 54
- Outlet Pipe Size 3/8"
- Weight 2.0 lb (0.9 kg)
- Cv (1-4) 1.7
- Fluid Media Filtered Air
- Width (mm) 110
- Default Position Normally Open
- Length 2.12 in (54 mm)
- Ambient Temperature -40 to 175 F (-40 to 80 C)
- Application General
- Operating Pressure (bar) 0.3 to 10
- Width 4.31 in (110 mm)
- Valve Type Directional Control
- Series 31
- Media Temperature -40 to 175 F (-40 to 80 C)
- Construction Poppet
- Valve Body Material Cast Aluminum
- Height 4.31 in (110 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 3126A3007 on Applied Automation is $309.00. Order now.
