GMP1SM00 Red Lion Industrial Automation Components

GMP1SM00 on Applied Automation
Red Lion

Part#:GMP1SM00

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

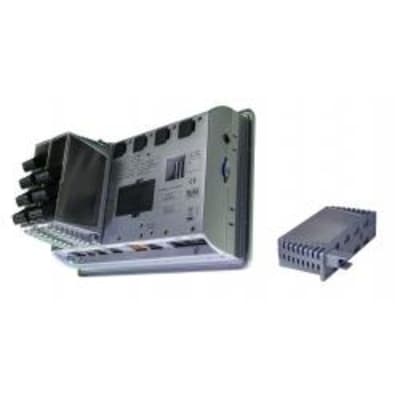

Red Lion GMP1SM00 is an I/O unit categorized under the PID modules sub-range, designed as a single-channel PID module. It features 2 x digital outputs (S.S.R.) and is equipped with two types of analog inputs: one capable of accepting a wide range of signals including 4-20mA, 0-20mA, 0-10Vdc, and various thermocouple types (T, E, J, K, R, S, B, N, C) as well as Pt100 and Ni120 RTDs, with a 50ms sample period and a 100-200ms response time, supported by a 16-bit resolution. The second analog input is dedicated to HCM Heater Current Monitoring, enhancing its application scope in process control environments.

Product Details

  • Functions
    Single-channel PID module
  • Main function
    I/O unit
  • Sub-range name
    PID modules
  • Order code / Manufacturer SKU
    GMP1SM00
  • Compliant with standard(s)
    CE IEC 60079-0 EN 61010-1 EN 61326-1 immunity to industrial locations UL Listed RoHS compliant UL Hazardous locations approval ATEX
  • Digital outputs
    2 x digital outputs (S.S.R.)
  • Primary brand
    Red Lion
  • Product series / family name
    Graphite series
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / Pt100 / Ni120 RTDs DC; 50ms sample period; 100-200ms response time; 16-bit) 1 x analog input (HCM Heater Current Monitoring)
  • Benefits
    Dedicated single and dual PID modules for the Graphite products Fully isolated design provides reliable operation PID control with reduced overshoot On demand auto-tuning of PID settings DC analog output (optional; gmp1 only) Heater current input (optiona

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of GMP1SM00 on Applied Automation is $511.00. Order now.
