DLC00001 Red Lion Industrial Automation Components

DLC00001 on Applied Automation
Red Lion

Part#:DLC00001

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion DLC00001 is a digital temperature controller designed for DIN rail mounting, featuring dual-loop control capabilities within the PID controllers DLC series. It is equipped with three digital outputs: two 24Vdc, 1A MOSFET outputs designated as OP1 and AL1, and a third configurable digital output (AL2 / OP2). The unit supports two analog inputs, compatible with a range of signals including 4-20mA, 0-20mA, 0-10Vdc, various thermocouple types (T, E, J, K, R, S, B, N, C), and RTDs types (Pt100, NI120), offering a 1mV/1μA conversion resolution, a 100ms sample period, a 300-400ms response time, and 0.1% accuracy. It operates on a supply voltage of 18-36Vdc or 24Vac, with a network frequency of 50/60 Hz, and communicates via RS-485 Modbus protocol. The analog inputs sampling rate is 9.5Hz, ensuring timely and accurate temperature control.

Product Details

  • Mounting mode
    DIN rail
  • Analog inputs
    2 x analog inputs (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / RTDs types Pt100; NI120; 1mV/1μA conversion resolution / 100ms sample period; 300-400ms response time; 0.1% accuracy)
  • Order code / Manufacturer SKU
    DLC00001
  • Main function
    Temperature controller (Digital)
  • Functions
    Dual-loop temperature controller
  • Communication protocol
    RS-485 Modbus
  • Frequency
    9.5Hz analog inputs sampling rate
  • Product series / family name
    Process controllers
  • Sub-range name
    PID controllers DLC series
  • Supply voltage (AC)
    24Vac
  • Digital outputs
    1 x digital output (24Vdc; 1A; MOSFET) (OP1) 1 x digital output (24Vdc; 1A; MOSFET) (AL1) 1 x digital output (AL2 / OP2)
  • Network frequency
    50/60 Hz
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Modular building block for multi-zone process control Two independent PID control loops PID control with reduced overshoot Universal inputs signals Two DC analog outputs (optional) Windows configuration software RS-485 Modbus protocol Channel B can be ass

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DLC00001 on Applied Automation is $583.00. Order now.

DLC00001 Related Documents

Red Lion - Industrial Automation Product Guide.pdf

Manufacturer warranty

DLC00001 Red Lion

$583.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$583.00

$583.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

Your Safety, Our Priority.

Warranty

Manufacturer warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare DLC00001 with other Industrial Automation Components products

Mounting mode

Analog inputs

Order code / Manufacturer...

Main function

Functions

Communication protocol

Frequency

Product series / family n...

Sub-range name

Supply voltage (AC)

Selected product

DLC00001
Backordered
DLC00001
Red Lion

Red Lion DLC00001 is a digital temperature controller designed for DIN rail mounting, featuring dual...

Mounting modeDIN rail

Analog inputs2 x analog inputs (4-20mA / ...

Order code / Manufacturer SKUDLC00001

Main functionTemperature controller (Digi...

FunctionsDual-loop temperature contro...

Communication protocolRS-485 Modbus

Frequency9.5Hz analog inputs sampling...

Product series / family nameProcess controllers

Sub-range namePID controllers DLC series

Supply voltage (AC)24Vac

E2A-M18KS08-WP-C3 2M
1 in stock
E2A-M18KS08-WP-C3 2M
Omron

E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...

Mounting mode-

Analog inputs-

Order code / Manufacturer SKU-

Main function-

Functions-

Communication protocol-

Frequency-

Product series / family name-

Sub-range name-

Supply voltage (AC)-

G36-10-01
20 in stock
G36-10-01
SMC

G(A)36, Pressure Gauge for General Purpose (O.D. 37)

Mounting mode-

Analog inputs-

Order code / Manufacturer SKU-

Main function-

Functions-

Communication protocol-

Frequency-

Product series / family name-

Sub-range name-

Supply voltage (AC)-

About the manufacturer

Red Lion

Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Recently viewed products

G12C0000 on Applied Automation

G12C0000

Red Lion

Red Lion G12C0000 is an HMI operator touchscreen panel from the HMI Rugged Graphite series designed for indoor use. It features a connection interface that includes 1 x RJ45 port for Ethernet connectivity, 2 x RJ11 ports supporting RS-232 communication, and an additional RJ45 port for RS-422 / RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and boasts a degree of protection rated at IP66 and NEMA 4X. The G12C0000 offers connection capacity with 8 x module slots and has a power consumption profile of typically 16 W, with a maximum of 56 W. Its electrical durability is highlighted by a backlight lifespan of 70,000 hours. For data storage, it is equipped with an SD card slot. The display's brightness is rated at 400cd/m2, ensuring clear visibility under various lighting conditions.

0 in stock

Relevant products

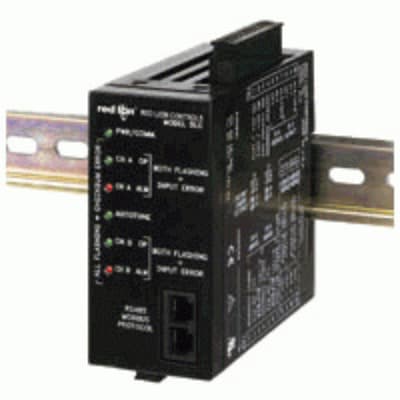

DLC01001 on Applied Automation
