Name: 7506GX2-SX
Brand: Red Lion

108TX

Red Lion 108TX is an industrial Ethernet switch designed for automation networks, featuring 8 RJ45 ports supporting 10/100BaseTX connections. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This device does not support an AC supply voltage and is specified to operate within an ambient air temperature range of -40 to +70°C. With a maximum throughput of 1.6Gbit/s, it ensures efficient data handling across the network. The 108TX offers an IP30 degree of protection, suitable for various industrial environments. It utilizes Ethernet as its communication protocol and is designed for DIN rail mounting, facilitating easy integration into control panels. The switch is housed in a metallic case, ensuring durability, and is part of the N-Tron 100 series, indicating its positioning within Red Lion's product lineup.

Red Lion

PAXT0000

Verified stock: 0

Red Lion PAXT0000 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs and a 1/8 DIN horizontal configuration measuring 96mm in width and 48mm in height (3.80" x 1.95"). It features 14.2mm red digits and has communication capability. This thermometer offers an IP65 NEMA 4X degree of protection and operates on a supply voltage of 11-36Vdc, including 12Vdc and 24Vdc options. It supports a 20Hz analog input sampling rate and includes 1 analog input that accommodates a variety of signals including 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it features 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission.

Red Lion

CUB5PB00

Verified stock: 0

Red Lion CUB5PB00 is a digital process meter from the CUB5P series, designed with a dimension of W75xH39mm (3"x 1.5"). It features one analog input that supports 4-20mA, 0-20mA, 0-10Vdc, and 0-50mA DC signals. This meter is equipped with an IP65 NEMA 4X degree of protection, ensuring its suitability for various industrial environments. It operates on a supply voltage range of 9-28Vdc, accommodating both 12Vdc and 24Vdc systems.

Red Lion

111FXE3-SC-80

Verified stock: 0

Red Lion 111FXE3-SC-80 is an industrial Ethernet switch designed to facilitate network communications. It operates with a supply voltage range of 10-49Vdc, including 12Vdc, 24Vdc, and 48Vdc, supported by redundant power inputs. This model features 8 RJ45 ports supporting 10/100BaseTX and 3 fiber optic SC connectors for single-mode fiber with a 100BaseFX rating, suitable for 80km rated optical fiber lengths. The ambient air temperature for storage is specified from -40 to +80 degrees Celsius. It is designed for DIN rail mounting within a metallic case, ensuring an IP30 rated protection. The 111FXE3-SC-80, part of the N-Tron 100 series, is identified with an UNSPSC code specific to its category, highlighting its capability with 11 ports for extensive network connectivity.

Red Lion

517FX-A-SC

Verified stock: 0

Red Lion 517FX-A-SC is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. This model operates on a supply voltage of 10-30Vdc, including redundant power inputs of 12Vdc and 24Vdc. It is equipped with 16 RJ45 ports supporting 10/100BaseTX, and one fiber optic SC connector for multi-mode fiber with a 100BaseFX rated current and a 2km rated optical fiber length. The switch includes advanced management firmware, operates within an ambient air temperature range for storage of -40 to +85 degrees Celsius, and achieves a maximum throughput of 2.6Gbit/s. The Ethernet switch is housed in a metallic case, suitable for DIN rail mounting, and is part of the N-Tron 500-A series, with a manufacturer specification of 17 ports.

Red Lion

7506GX2

Verified stock: 0

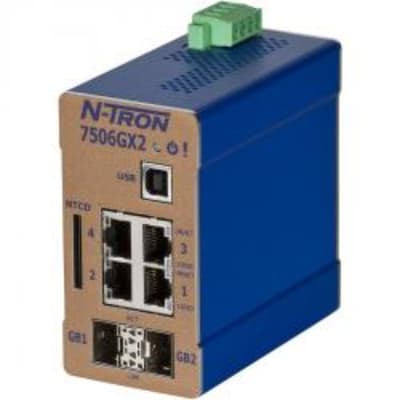

Red Lion 7506GX2 is an Ethernet Switch designed for Gigabit (GbE/GigE) industrial managed Ethernet applications. It supports SNMP v1, v2, v3, and Web Browser Management for configuration and monitoring. The switch features N-Ring Technology with a 30ms healing time, N-Link Redundant Ring Technology, and N-View Monitoring Technology for enhanced network reliability. It is equipped with EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN and Port VLAN, 802.1p QoS and Port QoS, Port Trunking, Port Mirroring, and 802.1d/w/D RSTP for comprehensive network management. The 7506GX2 also offers a DHCP Server with Option 82 Relay, IP Fallback, Local Port IP Addressing, 802.1AB-2005 LLDP, and MAC Address Based Filtering for port security. It has 4 x RJ45 ports (10/100/1000BaseTX) and 2 x SFP (Mini-GBIC) Gigabit Transceivers slots (optional) for connectivity. The switch operates within a -40...+80°C temperature range, uses Ethernet as its communication protocol, and incorporates ESD + Surge protection on power inputs. It is designed for DIN rail mounting with a metallic case and has a 6-port configuration. The N-Tron 7000 series switch is designed to support 10-49Vdc (12Vdc / 24Vdc / 48Vdc) with Normally Open (NO) auxiliary contacts.

Red Lion

7506GX2-LX-10

Verified stock: 0

Red Lion 7506GX2-LX-10 is a Gigabit (GbE/GigE) industrial managed Ethernet switch that features SNMP v1, v2, and v3 along with Web Browser Management for enhanced network control and monitoring. It incorporates N-Ring Technology with a 30ms healing time, N-Link Redundant Ring Technology, and N-View Monitoring Technology for robust network management. This switch supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, Port Mirroring, and 802.1d/w/D RSTP for comprehensive network configuration and optimization. It also offers a DHCP Server with Option 82 Relay, IP Fallback, Local Port IP Addressing, 802.1AB-2005 LLDP, and MAC Address Based Filtering for port security. The switch is designed with 4 x RJ45 ports (10/100/1000BaseTX), 2 x SFP (Mini-GBIC) Gigabit Transceivers slots plus 1 pre-installed single-mode transceiver for 100BaseFX 10km optical fiber, supporting a supply voltage of 10-49Vdc (12Vdc / 24Vdc / 48Vdc). It operates within a temperature range of -40 to +80 degrees Celsius and utilizes ESD + Surge protection on power inputs. The 7506GX2-LX-10 is housed in a metallic case, suitable for DIN rail mounting, and is part of the N-Tron 7000 series, designed for 6-port configurations.

Red Lion
