130-02AAP Parker Hannifin Industrial Automation Components
Part#:130-02AAP
Manufacturer:Parker Hannifin
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

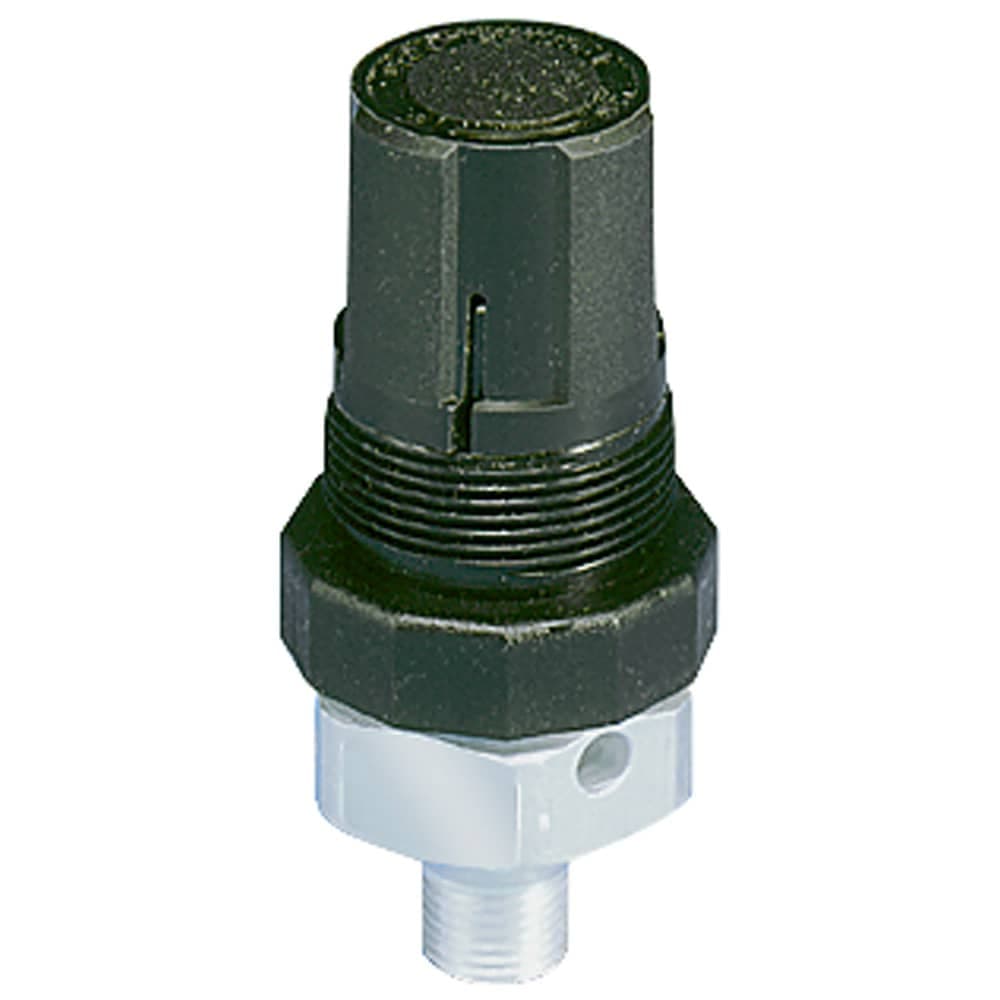

Relief Valves - 130 Series
Product Details
- HTS Code 8481400000
- Adjustment Screw Material Zinc Plated Steel Adjusting Screw and Spring
- Port Size 1/4
- Port Type Male
NPT │ BSPP - Body Material Aluminum
- Adjustment Mechanism Polypropylene Push-Pull Locking Knob
- Division Pneumatic Division
- Pressure Relief Setting 0 to 100 psig
- Operating Temperature +4° to +49° °C
- Maximum Inlet Pressure Rating 300 psig
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 130-02AAP on Applied Automation is $70.60. Order now.
About the product
The 130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available. Markets: Factory Automation Heavy Industries Features/Benefits: Compact design saves space Top adjustment knob Durable brass body Protects pneumatic circuit or system Applications: Industrial environment General pneumatic assembly
