7700-A3A31-UMB0750 Murr Elektronik Cable Assemblies
Part#:7700-A3A31-UMB0750
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

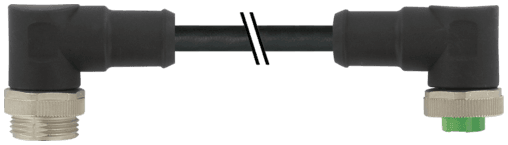

7700-A3A31-UMB0750 Murrelektronik - Mini (7/8) 3 pole, Male (Ext.) 90°/Female 90°, PUR 3x1.5 (3x16AWG) bk UL/CSA 7.5m
Product Details
- Weight 786 g
- Series Connector Systems
- Protection IP68 inserted and tightened (EN 60529)
- Bend radius (fixed) 7.5× outer Ø
- Locking material Zinc die casting, matte nickel plated
- Temperature range (fixed) -40...+80 °C
- Form A3A31
- Outer Ø 7.4 mm ±5%
- Operating current per contact max. 12 A
- No./diameter of wires 3× 1.5 mm²
- Bend radius (moving) 10× outer Ø
- Temperature range -25...+80 °C, depending on cable quality
- Cable length 7,5 m
- Compression gland 7/8" (SW24)
- Cable number UMB
- Product article number of manufacturer 7700-A3A31-UMB0750
- Material PUR
- Temperature range (mobile) -20...+80 °C
- Operating voltage max. 600 V AC/DC
- C-track properties 5 Mio.
- Material (jacket) PUR (UL/CSA)
- Wire isolation TPM (br, bl, gnye)
- Locking of ports Screw thread 7/8" (recommended torque 1.5 Nm) self-securing
- Jacket Color black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7700-A3A31-UMB0750 on Applied Automation is $146.90. Order now.
