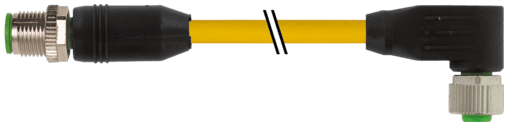

7700-40121-1500700 Murr Elektronik Cable Assemblies

Product Details

• Weight
  527 g
• Series
  Connector Systems
• Form
  40121
• Locking material
  Zinc die casting, matte nickel plated
• No./diameter of wires
  4× 0.75 mm²
• Operating voltage
  max. 250 V AC/DC
• Protection
  IP65, IP66K, IP67 inserted and tightened (EN 60529)
• Material (wire)
  Cu wire, bare
• Diameter (core)
  4× AWG18/19
• Current load capacity
  to DIN VDE 0298-4
• Coding
  A-coded
• Standards
  DIN EN 61076-2-101 (M12)
• Wire-Ø incl. isolation
  1.93 mm ±5%
• Material (jacket)
  TPE
• Nominal voltage
  600 V AC
• Cable length
  7 m
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Outer Ø
  7.2 mm ±5%
• Cable Type
  TPE
• Material group
  IEC 60664-1, category I
Pollution Degree
3
Cable weight [g/m]
78,57 g
Material (wire isolation)
PVC
Temperature range (fixed)
-40...+105 °C
Compression gland
M12 (SW13)
Approval (cable)
UL (AWM-Style 20626/10708), CSA; CE conform
Jacket Color
yellow
No. of torsion cycles
max. 3 Mio. (25 °C)
Operating voltage (only UL listed)
max. 30 V AC/DC
Cable identification
150
Shield
no
Single wire Ø (core)
0.234 mm
Color (jacket)
yellow
Temperature range (mobile)
-20...+90 °C
Torsion stress
±180°/m
No. of poles
4
Mounting method
inserted, tightened
Temperature range
-25...+85 °C, depending on cable quality
Construction (core)
19× 0.254 mm (multi-strand wire class 5)
Color/numbering of wires
br, bk, bl, wh
thermal resistance
flame retardant
Test voltage
4000 V
Product article number of manufacturer
7700-40121-1500700
Operating current per contact
max. 4 A
Resistor (core)
max. 22.5 Ω/km (20 °C)
Outer-Ø (jacket)
7.2 mm ±5%
Bend radius (moving)
15× outer Ø
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Rated surge voltage
2.5 kV
Wire isolation
PVC (br, wh, bl, bk)
C-track properties
10 Mio.
Stranding combination
4 wires twisted
Bend radius (fixed)
10× outer Ø
