7000-C0201-5180000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  10500 g
• Series
  Connector Systems
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Shield (Type)
  Copper braid
• Shore hardness (jacket)
  85 ±5 A
• Product article number of manufacturer
  7000-C0201-5180000
• Diameter (core)
  5× 0.75 mm²
• Color (jacket)
  gray
• chemical resistance
  good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B)
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Material (wire isolation)
  PVC
• optical shield cover
  min. 85%
• Bend radius (moving)
  15× outer Ø
• Cable weight [g/m]
  102,3 g
• Shield
  yes
• Jacket Color
  gray
• Single wire Ø (core)
  0.2 mm
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Approval (cable)
  CE
• Wire-Ø incl. isolation
  1.9 mm ±5%
Material (jacket)
PUR
Bend radius (fixed)
10× outer Ø
Material (wire)
Cu wire, bare
Outer-Ø (jacket)
7.4 mm ±5%
Temperature range (fixed)
-40...+80 °C
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free

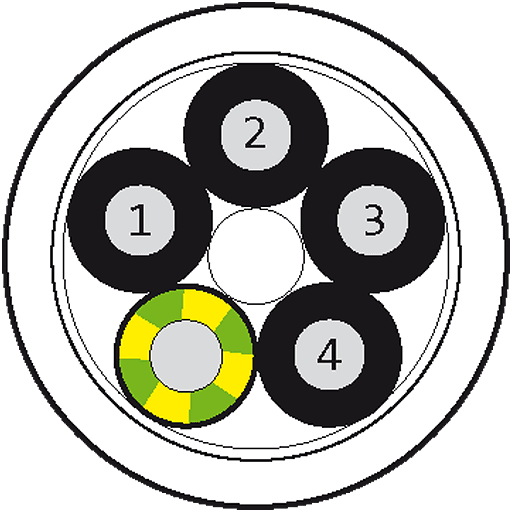

Stranding combination
5 wires twisted around central filler
Current load capacity
to DIN VDE 0298-4
AWG
similar to AWG 18
Shore hardness (wire isolation)
85 ±5 A
Nominal voltage
300/500 V AC
Test voltage
3000 V AC
Cable identification
518
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Temperature range (mobile)
-5...+80 °C
