7000-58141-2170600 Murr Elektronik Cable Assemblies
Part#:7000-58141-2170600
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

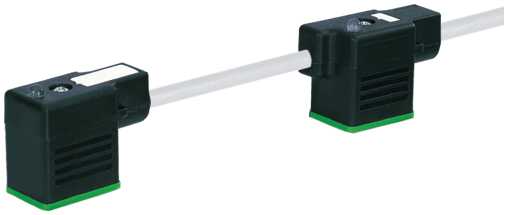

7000-58141-2170600 Murrelektronik - MSUD DOUBLE VALVE PLUG FORM BI 11MM, PVC 4X0.75 GRAY, 6m
Product Details
- Weight 517 g
- Series Connector Systems
- Operating voltage 24 V AC ±20% / DC ±25%
- Additional suppressor Diode/Z-Diode
- No./diameter of wires 4× 0.75 mm²
- Material (wire) Cu wire, bare
- Material (jacket) PVC
- Current load capacity to DIN VDE 0298-4
- Shore hardness (jacket) 80 ±5 A
- Bend radius (moving) 10× outer Ø
- Rated surge voltage 0.8 kV
- Outer Ø 6.5 mm ±5%
- Resistor (core) max. 26 Ω/km (20 °C)
- Shield no
- Test voltage 3000 V AC
- Nominal voltage 300/500 V AC
- LED display yellow
- Locking material Steel (galvanized)
- Wire isolation PVC (bk num, gnye)
- AWG similar to AWG 18
- Outer-Ø (jacket) 6.5 mm ±5%
- Cable length 6 m
- Material PBT
- Temperature range -25...+85 °C, depending on cable quality
- Construction (core) 24× 0.2 mm (multi-strand wire class 5)
- Material property (jacket) CFC-, cadmium-, silicone- and lead-free
- Temperature range (mobile) -5...+70 °C
- Locking of ports M3 (recommended torque 0.4 Nm)
- Form 58141
- Protection IP67 inserted and tightened (EN 60529)
- Pollution Degree 3
- Cable Type 1 (PVC)
- Stranding combination 4 wires twisted
- Color/numbering of wires bk numbered, gnye longitudinally striped
- Switch off peak max. 55 V
- Switch off delay time max. 20 ms
- Single wire Ø (core) 0.2 mm
- Material (wire isolation) PVC
- Temperature range (fixed) -30...+70 °C
- Current consumption max. 15 mA
- suitable for corrugated tube (internal Ø) without
- Cable identification 217
- Diameter (core) 4× 0.75 mm²
- Wire-Ø incl. isolation 1.8 mm ±5%
- chemical resistance good resistance to oil, gasoline and chemicals
- Operating current per contact max. 4 A
- Housing Black plastic (gray on request)
- Approval (cable) CE conform
- Shore hardness (wire isolation) 43 ±5 D
- Jacket Color gray
- Product article number of manufacturer 7000-58141-2170600
- Material group IEC 60664-1, category I
- Material (gasket) PUR
- Cable weight [g/m] 75,9 g
- Material property (wire isolation) CFC-, cadmium-, silicone- and lead-free
- Color (jacket) gray
- Bend radius (fixed) 5× outer Ø
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-58141-2170600 on Applied Automation is $79.15. Order now.
