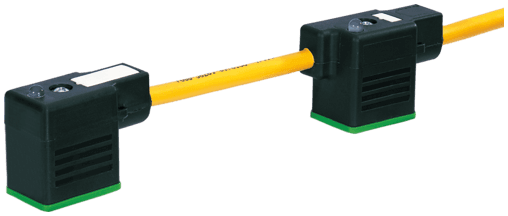

7000-58141-0171000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  739 g
• Series
  Connector Systems
• Protection
  IP67 inserted and tightened (EN 60529)
• Temperature range
  -25...+85 °C, depending on cable quality
• Diameter (core)
  4× 0.75 mm²
• Shield
  no
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Material group
  IEC 60664-1, category I
• Cable Type
  1 (PVC)
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Temperature range (fixed)
  -30...+70 °C
• Form
  58141
• Operating voltage
  24 V AC ±20% / DC ±25%
• LED display
  yellow
• Housing
  Black plastic (gray on request)
• Wire isolation
  PVC (bk num, gnye)
• Material (wire)
  Cu wire, bare
• No./diameter of wires
  4× 0.75 mm²
• Wire-Ø incl. isolation
  1.8 mm ±5%
Material (jacket)
PVC
Current load capacity
to DIN VDE 0298-4
Temperature range (mobile)
-5...+70 °C
Product article number of manufacturer
7000-58141-0171000
Locking of ports
M3 (recommended torque 0.4 Nm)
Switch off peak
max. 55 V
Locking material
Steel (galvanized)
Material
PBT
Cable identification
017
Approval (cable)
CE conform
AWG
similar to AWG 18
Stranding combination
4 wires twisted
Jacket Color
yellow
Shore hardness (jacket)
80 ±5 A
Cable length
10 m
Current consumption
max. 15 mA
Operating current per contact
max. 4 A
Additional suppressor
Diode/Z-Diode
Switch off delay time
max. 20 ms
Outer Ø
6.5 mm ±5%
Resistor (core)
max. 26 Ω/km (20 °C)
Color/numbering of wires
bk numbered, gnye longitudinally striped
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
6.5 mm ±5%
Color (jacket)
yellow
Bend radius (moving)
10× outer Ø
Rated surge voltage
0.8 kV
suitable for corrugated tube (internal Ø)
without
Material (gasket)
PUR
Pollution Degree
3
Cable weight [g/m]
81,4 g
Single wire Ø (core)
0.2 mm
Material (wire isolation)
PVC
Shore hardness (wire isolation)
43 ±5 D
Nominal voltage
300/500 V AC
Test voltage
3000 V AC
Bend radius (fixed)
5× outer Ø
