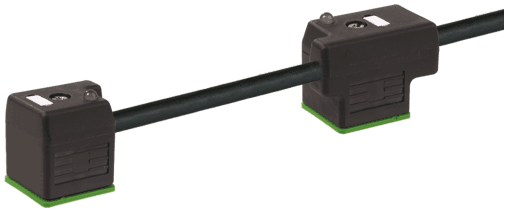

7000-58041-6373000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  1826 g
• Series
  Connector Systems
• Switch off peak
  max. 55 V
• Cable identification
  637
• Single wire Ø (core)
  0.15 mm
• Material (jacket)
  PUR
• Bend radius (moving)
  10× outer Ø
• Cable length
  30 m
• Locking of ports
  M3 (recommended torque 0.4 Nm)
• Diameter (core)
  4× 0.75 mm²
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Current load capacity
  to DIN VDE 0298-4
• Torsion stress
  ±180°/m
• Rated surge voltage
  0.8 kV
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• AWG
  similar to AWG 18
• Shore hardness (jacket)
  90 ±5 A
• Nominal voltage
  300 V AC
• Housing
  Black plastic (gray on request)
• Cable weight [g/m]
  69,3 g
Shore hardness (wire isolation)
70 ±5 D
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 10 m/s²
Protection
IP67 inserted and tightened (EN 60529)
Temperature range
-25...+85 °C, depending on cable quality
Material (wire)
Cu wire, bare
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Product article number of manufacturer
7000-58041-6373000
Switch off delay time
max. 20 ms
Cable Type
3 (PUR)
Wire-Ø incl. isolation
1.85 mm ±5%
Color (jacket)
black
Bend radius (fixed)
5× outer Ø
Form
58041
No./diameter of wires
4× 0.75 mm²
Resistor (core)
max. 26 Ω/km (20 °C)
Shield
no
Temperature range (mobile)
-25...+80 °C
No. of torsion cycles
max. 2 Mio. (25 °C)
Operating voltage
24 V AC ±20% / DC ±25%
Outer Ø
6.5 mm ±5%
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
6.5 mm ±5%
Test voltage
2500 V AC
Travel speed (C-track)
max. 3 m/s
Wire isolation
PP (bk num, gnye)
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Color/numbering of wires
bk numbered, gnye longitudinally striped
Temperature range (fixed)
-40...+80 °C
Torsion speed
35 cycles/min
Operating current per contact
max. 4 A
C-track properties
10 Mio.
Material (wire isolation)
PP
Stranding combination
4 wires twisted
Jacket Color
black
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
