7000-41021-6560200 Murr Elektronik Cable Assemblies
Part#:7000-41021-6560200
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

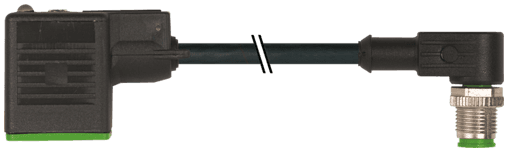

7000-41021-6560200 Murrelektronik - M12 MALE 90° / MSUD VALVE PLUG FORM B 10 MM, PUR 3X0.75 black ROBOT, drag ch 2m
Product Details
- Weight 148 g
- Series Connector Systems
- Housing Black plastic (gray on request)
- Cable identification 656
- Construction (core) 42× 0.15 mm (multi-strand wire class 6)
- Material (jacket) PUR
- Bend radius (moving) 10× outer Ø
- Operating current per contact max. 4 A
- Switch off delay time max. 20 ms
- Material (wire) Cu wire, bare
- AWG similar to AWG 18
- Test voltage 2500 V AC
- thermal resistance flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
- Product article number of manufacturer 7000-41021-6560200
- Form 41021
- Single wire Ø (core) 0.15 mm
- Diameter (core) 3× 0.75 mm²
- Stranding combination 3 wires twisted
- Bend radius (fixed) 5× outer Ø
- LED display (yellow)
- Resistor (core) max. 26 Ω/km (20 °C)
- Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
- Current load capacity to DIN VDE 0298-4
- Torsion speed 35 cycles/min
- Operating voltage 24 V AC ±20% / DC ±25%
- Temperature range -25...+85 °C, depending on cable quality
- Shore hardness (wire isolation) 58 ±3 D
- Outer-Ø (jacket) 5.2 mm ±5%
- No. of bending cycles (C-track) max. 10 Mio. (25 °C)
- Rated surge voltage 0.8 kV
- Wire-Ø incl. isolation 1.7 mm ±5%
- Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
- Acceleration (C-track) max. 5 m/s²
- Current consumption approx. 12 mA
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
- Travel speed (C-track) max. 3.3 m/s
- Switch off peak max. 55 V
- Cable Type 5 (PUR schweißfunkenbeständig)
- Shore hardness (jacket) 58 ±3 D
- No. of torsion cycles max. 1 Mio. (25 °C)
- Locking of ports M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
- Approval (cable) cURus (AWM-Style 20549/10493); CE conform
- Color/numbering of wires bk numbered, gnye longitudinally striped
- Shield no
- Nominal voltage 300 V AC
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Cable length 2 m
- Protection IP66K, IP67 inserted and tightened (EN 60529)
- Cable weight [g/m] 48,4 g
- Material (wire isolation) PP
- Color (jacket) black
- Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
- Torsion stress ±360°/m
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
