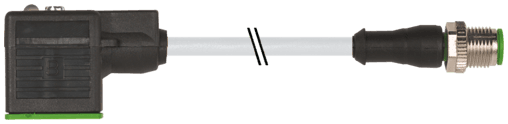

7000-40931-2350060 Murr Elektronik Cable Assemblies

Product Details

• Weight
  80 g
• Series
  Connector Systems
• Rated surge voltage
  0.8 kV
• Material
  MSUD (PBT); M12 (PUR)
• Cable Type
  3 (PUR)
• Cable weight [g/m]
  41,8 g
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Bend radius (moving)
  10× outer Ø
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• LED display
  (yellow/green)
• suitable for corrugated tube (internal Ø)
  10 mm
• C-track properties
  10 Mio.
• AWG
  similar to AWG 22
• Shore hardness (jacket)
  90 ±5 A
• Bend radius (fixed)
  5× outer Ø
• Product article number of manufacturer
  7000-40931-2350060
• Material group
  IEC 60664-1, category I
• Housing
  Black plastic (gray on request)
• Cable identification
  235
Material (wire isolation)
PP
Color (jacket)
gray
Travel speed (C-track)
max. 3 m/s
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Temperature range
-25...+85 °C, depending on cable quality
Single wire Ø (core)
0.1 mm
Color/numbering of wires
br, bk, bl, wh, gnye longitudinally striped
Current load capacity
to DIN VDE 0298-4
Torsion speed
35 cycles/min
Operating voltage
24 V DC ±25%
Outer Ø
4.8 mm ±5%
Shore hardness (wire isolation)
70 ±5 D
Outer-Ø (jacket)
4.8 mm ±5%
Temperature range (mobile)
-25...+80 °C
Protection
IP67 inserted and tightened (EN 60529)
Material (gasket)
PUR
Material (wire)
Cu wire, bare
Shield
no
Nominal voltage
300 V AC
Cable length
0,6 m
Operating current per contact
max. 4 A
Wire isolation
PP (br, wh, bl, bk, gnye)
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Material (jacket)
PUR
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Form
40931
No./diameter of wires
5× 0.34 mm²
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Wire-Ø incl. isolation
1.25 mm ±5%
Jacket Color
gray
Acceleration (C-track)
max. 10 m/s²
Locking material
Zinc die casting, matte nickel plated
Compression gland
M12 (SW13)
Resistor (core)
max. 57 Ω/km (20 °C)
Stranding combination
5 wires twisted around central filler
Test voltage
2500 V AC
Current consumption
max. 15 mA
Pollution Degree
3
Diameter (core)
5× 0.34 mm²
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Temperature range (fixed)
-40...+80 °C
Torsion stress
±180°/m
