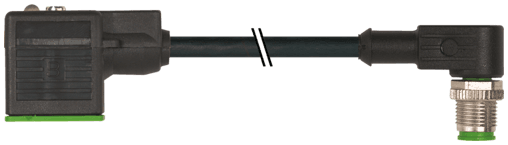

7000-40901-6260250 Murr Elektronik Cable Assemblies

Product Details

• Weight
  179 g
• Series
  Connector Systems
• Current consumption
  approx. 15 mA
• Switch off delay time
  max. 20 ms
• AWG
  similar to AWG 18
• Color (jacket)
  black
• Travel speed (C-track)
  max. 3.3 m/s
• LED display
  yellow
• Material
  MSUD (PBT); M12 (PUR)
• Pollution Degree
  3
• Approval (cable)
  UL (AWM-Style 20549/1731), CSA; CE conform
• Wire-Ø incl. isolation
  1.8 mm ±5%
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Cable length
  2,5 m
• Form
  40901
• Locking material
  Zinc die casting, matte nickel plated
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Temperature range (mobile)
  -5...+80 °C
• Operating current per contact
  max. 4 A
suitable for corrugated tube (internal Ø)
10 mm
Cable Type
2 (PUR/PVC)
Shore hardness (wire isolation)
43 ±5 D
Current load capacity
to DIN VDE 0298-4
Protection
IP67 inserted and tightened (EN 60529)
Housing
Black plastic (gray on request)
Cable weight [g/m]
55,33 g
Shield
no
Test voltage
2000 V AC
Product article number of manufacturer
7000-40901-6260250
Operating voltage
24 V AC ±20% / DC ±25%
Cable identification
626
Color/numbering of wires
bk numbered, gnye longitudinally striped
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Additional suppressor
Diode/Z-Diode
Resistor (core)
max. 26 Ω/km (20 °C)
Material (wire isolation)
PVC
Outer-Ø (jacket)
5.9 mm ±5%
Bend radius (moving)
15× outer Ø
Rated surge voltage
0.8 kV
Material (gasket)
PUR
Diameter (core)
3× 0.75 mm²
Shore hardness (jacket)
80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket)
Acceleration (C-track)
max. 5 m/s²
Switch off peak
max. 55 V
Temperature range
-25...+85 °C, depending on cable quality
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Stranding combination
3 wires twisted
Nominal voltage
UL 300 V AC
Bend radius (fixed)
10× outer Ø
Material group
IEC 60664-1, category I
Compression gland
M12 (SW13)
Single wire Ø (core)
0.15 mm
Material (wire)
Cu wire, bare
Material (jacket)
PUR/PVC
Temperature range (fixed)
-30...+80 °C
