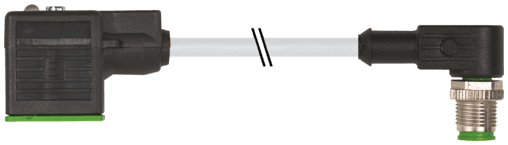

7000-40901-2560200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  152 g
• Series
  Connector Systems
• Outer-Ø (jacket)
  5.2 mm ±5%
• Test voltage
  2500 V AC
• Switch off peak
  max. 55 V
• Material
  MSUD (PBT); M12 (PUR)
• suitable for corrugated tube (internal Ø)
  10 mm
• Switch off delay time
  max. 20 ms
• Temperature range
  -25...+85 °C, depending on cable quality
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Material (wire)
  Cu wire, bare
• Stranding combination
  3 wires twisted
• Wire-Ø incl. isolation
  1.7 mm ±5%
• Material group
  IEC 60664-1, category I
• Form
  40901
• Protection
  IP67 inserted and tightened (EN 60529)
• Housing
  Black plastic (gray on request)
• Cable identification
  256
• Pollution Degree
  3
• Resistor (core)
  max. 26 Ω/km (20 °C)
Material (wire isolation)
PP
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Locking material
Zinc die casting, matte nickel plated
Material (gasket)
PUR
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Cable weight [g/m]
48,4 g
Shield
no
LED display
yellow
Cable Type
5 (PUR schweißfunkenbeständig)
Material (jacket)
PUR
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Shore hardness (wire isolation)
74 ±3 D
thermal resistance
flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
Color/numbering of wires
bk numbered, gnye longitudinally striped
Operating current per contact
max. 4 A
Additional suppressor
Diode/Z-Diode
AWG
similar to AWG 18
Shore hardness (jacket)
58 ±3 D
Color (jacket)
gray
Current consumption
approx. 15 mA
Compression gland
M12 (SW13)
Single wire Ø (core)
0.15 mm
Diameter (core)
3× 0.75 mm²
Operating voltage
24 V AC ±20% / DC ±25%
Rated surge voltage
0.8 kV
Nominal voltage
300 V AC
No. of torsion cycles
max. 1 Mio. (25 °C)
Bend radius (fixed)
5× outer Ø
Torsion stress
±360°/m
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Current load capacity
to DIN VDE 0298-4
Cable length
2 m
Bend radius (moving)
10× outer Ø
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Travel speed (C-track)
max. 3.3 m/s
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Acceleration (C-track)
max. 5 m/s²
Product article number of manufacturer
7000-40901-2560200
Torsion speed
35 cycles/min
