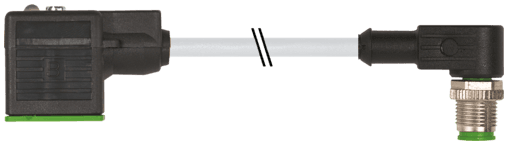

7000-40901-2260100 Murr Elektronik Cable Assemblies

Product Details

• Weight
  104 g
• Series
  Connector Systems
• Material group
  IEC 60664-1, category I
• Protection
  IP67 inserted and tightened (EN 60529)
• Approval (cable)
  UL (AWM-Style 20549/1731), CSA; CE conform
• Shore hardness (wire isolation)
  43 ±5 D
• Current consumption
  approx. 15 mA
• Switch off peak
  max. 55 V
• Additional suppressor
  Diode/Z-Diode
• Temperature range
  -25...+85 °C, depending on cable quality
• Wire-Ø incl. isolation
  1.8 mm ±5%
• chemical resistance
  good resistance to oil, gasoline and chemicals
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Material (gasket)
  PUR
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Stranding combination
  3 wires twisted
• Outer-Ø (jacket)
  5.9 mm ±5%
• Cable length
  1 m
• Locking material
  Zinc die casting, matte nickel plated
Cable weight [g/m]
55,33 g
Color/numbering of wires
bk numbered, gnye longitudinally striped
Shore hardness (jacket)
80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket)
Bend radius (fixed)
10× outer Ø
suitable for corrugated tube (internal Ø)
10 mm
Material (wire)
Cu wire, bare
Shield
no
Color (jacket)
gray
Product article number of manufacturer
7000-40901-2260100
Form
40901
Rated surge voltage
0.8 kV
Cable identification
226
AWG
similar to AWG 18
Temperature range (fixed)
-30...+80 °C
Bend radius (moving)
15× outer Ø
Operating voltage
24 V AC ±20% / DC ±25%
Switch off delay time
max. 20 ms
Single wire Ø (core)
0.15 mm
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Test voltage
2000 V AC
Operating current per contact
max. 4 A
Housing
Black plastic (gray on request)
Cable Type
2 (PUR/PVC)
Diameter (core)
3× 0.75 mm²
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Travel speed (C-track)
max. 3.3 m/s
Material
MSUD (PBT); M12 (PUR)
Pollution Degree
3
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Material (jacket)
PUR/PVC
Temperature range (mobile)
-5...+80 °C
Nominal voltage
UL 300 V AC
Acceleration (C-track)
max. 5 m/s²
LED display
yellow
Compression gland
M12 (SW13)
Material (wire isolation)
PVC
Current load capacity
to DIN VDE 0298-4
