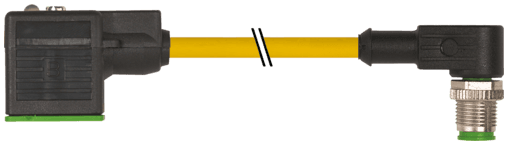

7000-40901-0360150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  127 g
• Series
  Connector Systems
• LED display
  yellow
• Protection
  IP67 inserted and tightened (EN 60529)
• Temperature range
  -25...+85 °C, depending on cable quality
• AWG
  similar to AWG 18
• Material (wire isolation)
  PP
• Bend radius (fixed)
  5× outer Ø
• Operating voltage
  24 V AC ±20% / DC ±25%
• Material (gasket)
  PUR
• Material (wire)
  Cu wire, bare
• Shore hardness (wire isolation)
  70 ±5 D
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Form
  40901
• suitable for corrugated tube (internal Ø)
  10 mm
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Shore hardness (jacket)
  90 ±5 A
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Acceleration (C-track)
  max. 10 m/s²
• Switch off peak
  max. 55 V
Pollution Degree
3
Diameter (core)
3× 0.75 mm²
Outer-Ø (jacket)
5.9 mm ±5%
Current load capacity
to DIN VDE 0298-4
Product article number of manufacturer
7000-40901-0360150
Material
MSUD (PBT); M12 (PUR)
Cable identification
036
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Stranding combination
3 wires twisted
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Bend radius (moving)
10× outer Ø
Operating current per contact
max. 4 A
Additional suppressor
Diode/Z-Diode
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Shield
no
Nominal voltage
300 V AC
Material group
IEC 60664-1, category I
Switch off delay time
max. 20 ms
Resistor (core)
max. 26 Ω/km (20 °C)
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Rated surge voltage
0.8 kV
Compression gland
M12 (SW13)
Cable Type
3 (PUR)
Color/numbering of wires
bk numbered, gnye longitudinally striped
Test voltage
2500 V AC
No. of torsion cycles
max. 2 Mio. (25 °C)
Current consumption
approx. 15 mA
Housing
Black plastic (gray on request)
Single wire Ø (core)
0.15 mm
Material (jacket)
PUR
Color (jacket)
yellow
Torsion speed
35 cycles/min
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Locking material
Zinc die casting, matte nickel plated
Cable weight [g/m]
56,1 g
Wire-Ø incl. isolation
1.85 mm ±5%
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Torsion stress
±180°/m
Travel speed (C-track)
max. 3 m/s
Cable length
1,5 m
