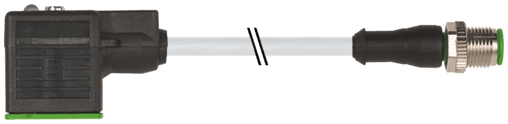

7000-40881-2560500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  289 g
• Series
  Connector Systems
• Operating current per contact
  max. 4 A
• Temperature range
  -25...+85 °C, depending on cable quality
• Material group
  IEC 60664-1, category I
• Material (gasket)
  PUR
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Shield
  no
• Bend radius (moving)
  10× outer Ø
• Current consumption
  max. 15 mA
• Locking material
  Zinc die casting, matte nickel plated
• Single wire Ø (core)
  0.15 mm
• Compression gland
  M12 (SW13)
• Housing
  Black plastic (gray on request)
• Diameter (core)
  3× 0.75 mm²
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
• Current load capacity
  to DIN VDE 0298-4
• Torsion stress
  ±360°/m
• LED display
  yellow
• Cable identification
  256
Shore hardness (wire isolation)
74 ±3 D
Outer-Ø (jacket)
5.2 mm ±5%
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Operating voltage
24 V AC ±20% / DC ±25%
suitable for corrugated tube (internal Ø)
10 mm
Cable Type
5 (PUR schweißfunkenbeständig)
Color/numbering of wires
bk numbered, gnye longitudinally striped
thermal resistance
flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
Rated surge voltage
0.8 kV
Material
MSUD (PBT); M12 (PUR)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Wire-Ø incl. isolation
1.7 mm ±5%
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Switch off delay time
max. 20 ms
Cable weight [g/m]
48,4 g
Shore hardness (jacket)
58 ±3 D
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Product article number of manufacturer
7000-40881-2560500
Switch off peak
max. 55 V
Pollution Degree
3
Material (wire)
Cu wire, bare
Material (wire isolation)
PP
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Acceleration (C-track)
max. 5 m/s²
Form
40881
Protection
IP67 inserted and tightened (EN 60529)
Resistor (core)
max. 26 Ω/km (20 °C)
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Bend radius (fixed)
5× outer Ø
No. of torsion cycles
max. 1 Mio. (25 °C)
AWG
similar to AWG 18
Stranding combination
3 wires twisted
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Torsion speed
35 cycles/min
Material (jacket)
PUR
Color (jacket)
gray
Travel speed (C-track)
max. 3.3 m/s
Nominal voltage
300 V AC
Cable length
5 m
Test voltage
2500 V AC
