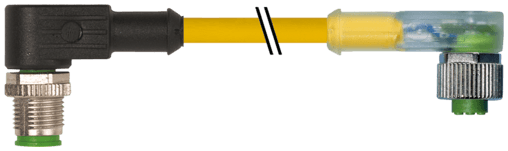

7000-40421-0340200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  106 g
• Series
  Connector Systems
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Cable weight [g/m]
  36,3 g
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Torsion stress
  ±180°/m
• Material group
  IEC 60664-1, category I
• Form
  40421
• suitable for corrugated tube (internal Ø)
  10 mm
• Cable identification
  034
• Material (wire isolation)
  PP
• Construction (core)
  42× 0.1 mm (multi-strand wire class 6)
• Shield
  no
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Bend radius (fixed)
  5× outer Ø
• Coding
  A-coded
• Operating voltage
  24 V DC ±25%
• Pollution Degree
  3
• Mounting method
  inserted, tightened
Material (wire)
Cu wire, bare
Color/numbering of wires
br, bk, bl, wh
Shore hardness (wire isolation)
70 ±5 D
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Cable Type
3 (PUR)
Diameter (core)
4× 0.34 mm²
Stranding combination
4 wires twisted
Material (jacket)
PUR
Outer-Ø (jacket)
4.5 mm ±5%
Test voltage
2500 V AC
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Cable length
2 m
Locking material
Zinc die casting, matte nickel plated
Temperature range
-25...+85 °C, depending on cable quality
AWG
similar to AWG 22
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Nominal voltage
300 V AC
Acceleration (C-track)
max. 10 m/s²
No. of torsion cycles
max. 2 Mio. (25 °C)
Travel speed (C-track)
max. 3 m/s
Product article number of manufacturer
7000-40421-0340200
Operating voltage (only UL listed)
max. 30 V DC
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Color (jacket)
yellow
Bend radius (moving)
10× outer Ø
Torsion speed
35 cycles/min
Material
PUR
Standards
DIN EN 61076-2-101 (M12)
Single wire Ø (core)
0.1 mm
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Current load capacity
to DIN VDE 0298-4
Operating current per contact
max. 4 A
Compression gland
M12 (SW13)
Resistor (core)
max. 57 Ω/km (20 °C)
Shore hardness (jacket)
90 ±5 A
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
