7000-29245-0000000 Murr Elektronik Cable Assemblies
Part#:7000-29245-0000000
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

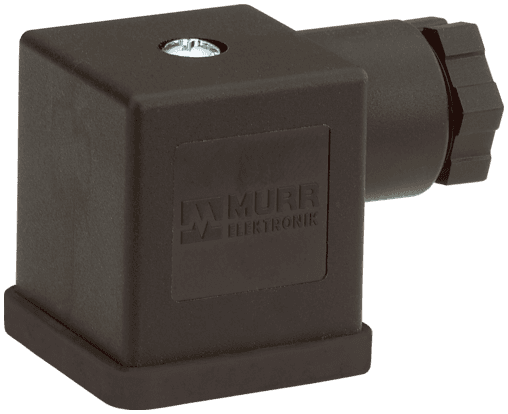

7000-29245-0000000 Murrelektronik - SVS ECO VALVE PLUG FORM A 18MM 230V, 2+PE field-wireable M16x1.5
Product Details
- Weight 26.7 g
- Series Connector Systems
- Locking of ports M3 (recommended torque 0.4 Nm)
- Housing PA6 GF30: black
- Protection IP65 inserted and tightened (EN 60529)
- Mounting method inserted, tightened
- Compression gland M16×1.5 mm
- Tightening torque (clamp screw) 0.2 ±0.1 Nm
- Sealing range (cable Ø) 6...8 mm
- Temperature range -40...+90 °C
- Form 29245
- Material (gasket) NBR
- Operating voltage max. 250 V AC/DC
- Configuration 2 contacts + PE
- Operating current per contact max. 10 A
- Connection cross section 0.5...1.5 mm²
- Product article number of manufacturer 7000-29245-0000000
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-29245-0000000 on Applied Automation is $7.60. Order now.
