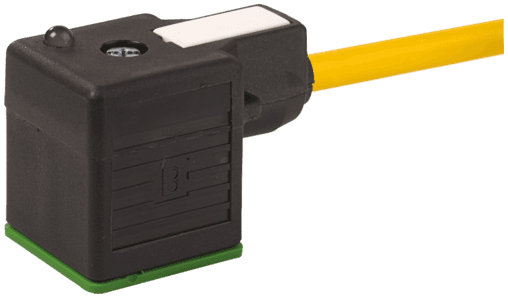

7000-18141-0180500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  418 g
• Series
  Connector Systems
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire isolation)
  PVC
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Form
  18141
• Approval (cable)
  CE conform
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Material (jacket)
  PVC
• Product article number of manufacturer
  7000-18141-0180500
• Housing
  Black plastic (gray on request)
• Material (wire)
  Cu wire, bare
• Shore hardness (wire isolation)
  43 ±5 D
• Shore hardness (jacket)
  80 ±5 A
• Cable length
  5 m
• Outer Ø
  7.0 mm ±5%
• AWG
  similar to AWG 18
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Test voltage
  3000 V AC
• Operating current per contact
  max. 4 A
Cable Type
1 (PVC)
Resistor (core)
max. 26 Ω/km (20 °C)
Shield
no
Temperature range (fixed)
-30...+70 °C
Operating voltage
24 V DC ±25%
Cable identification
018
Outer-Ø (jacket)
7.0 mm ±5%
Bend radius (moving)
10× outer Ø
No./diameter of wires
5× 0.75 mm²
Single wire Ø (core)
0.2 mm
Jacket Color
yellow
Temperature range (mobile)
-5...+70 °C
Locking of ports
M3 (recommended torque 0.4 Nm)
Diameter (core)
to DIN VDE 0298-4
Stranding combination
5 wires twisted around central filler
Current load capacity
to DIN VDE 0298-4
Bend radius (fixed)
5× outer Ø
Protection
IP67 inserted and tightened (EN 60529)
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Nominal voltage
300/500 V AC
Wire isolation
PVC (bk num, gnye)
Cable weight [g/m]
94,6 g
Wire-Ø incl. isolation
1.8 mm ±5%
Color (jacket)
yellow
