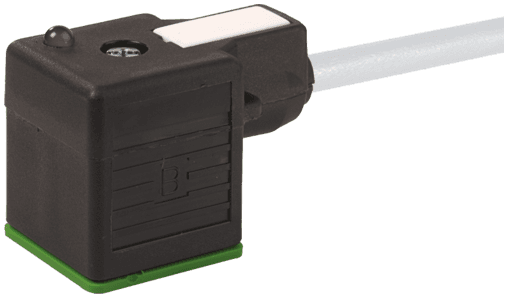

7000-18111-5001000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  708 g
• Series
  Connector Systems
• Housing
  Black plastic (gray on request)
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Material (jacket)
  PVC
• Bend radius (moving)
  10× outer Ø
• Form
  18111
• Cable weight [g/m]
  77 g
• Material (wire isolation)
  PVC
• Temperature range (fixed)
  -40...+70 °C
• Locking of ports
  M3 (recommended torque 0.4 Nm)
• Cable identification
  500
• Stranding combination
  4 wires twisted
• Temperature range (mobile)
  -5...+70 °C
• No./diameter of wires
  4× 0.75 mm²
• Diameter (core)
  4× 0.75 mm²
• Test voltage
  2000 V AC
• Wire isolation
  PVC (bk num, gnye)
• AWG
  similar to AWG 18
• Jacket Color
  gray
Temperature range
-25...+85 °C, depending on cable quality
Material (wire)
Cu wire, bare
Outer-Ø (jacket)
6.5 mm ±5%
Cable length
10 m
Outer Ø
6.5 mm ±5%
Color/numbering of wires
bk numbered, gnye longitudinally striped
chemical resistance
good resistance to oil, gasoline and chemicals
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Cable number
500
Operating voltage
max. 230 V AC/DC
Single wire Ø (core)
0.2 mm
Nominal voltage
240 V AC
Operating current per contact
max. 10 A
Resistor (core)
max. 26 Ω/km (20 °C)
Color (jacket)
gray
Shield
no
Product article number of manufacturer
7000-18111-5001000
