59718 Murr Elektronik I/O Systems
Part#:59718
Manufacturer:Murr Elektronik
Category:I/O Systems
Product Lifecycle:Active
Product description

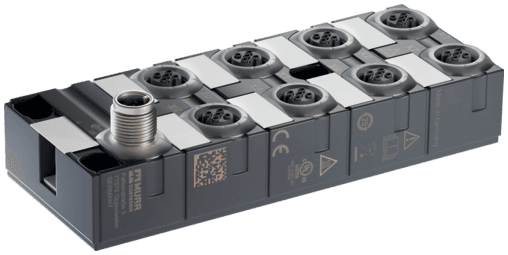

59718 Murrelektronik - MVP12-P6 DIO8 DIO8 8xM12A IOLB12 B0
Product Details
- Weight 240 g
- Series Field Bus System
- Mounting method 2-hole screw mounting
- PIN 2 Input/output/DIO (port X0...X7)
- LED display US-IOL: sensor power supply IOL (green: OK)
- IO-Link Device
- Communication status via LED
- Operating voltage (UA) 24 V DC (18...30 V DC)
- Switching current per output max. 2 A
- I/O ports M12, 5-pole, A-coded
- Installation height max. max. 3000 m above sea level
- Type Type 1 + type 3
- Diagnostic via LED per module and channel
- Protection IP68
- Specification IO-Link V1.1.2, compatible with: IO-Link V1.1.3
- Monitoring - under voltage yes
- Current consumption max. 50 mA
- PIN 4 Input/output/DIO (port X0...X7)
- Short-circuit and overload yes
- Input filter 1 ms
- Product article number of manufacturer 59718
- Dimensions H×W×D 126×50×34.5 mm
- Cycle time min. 1 ms
- Temperature range -25...+70 °C (storage temperature -40...+85 °C)
- Operating modes COM3 (230.4 kBaud)
- Actuator warning yes
- Operating voltage (US) 24 V DC (18...30 V DC)
- Port Class B
- Monitoring - no voltage yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 59718 on Applied Automation is $396.00. Order now.
