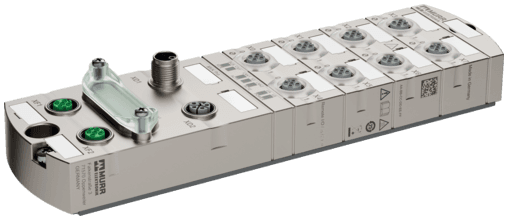

54612 Murr Elektronik I/O Systems

Product Details

• Weight
  992 g
• Series
  Field Bus System
• Mounting method
  2-hole screw mounting, compatible with I/O modules of MVK model range
• IIoT Interfaces
  yes (OPC UA, MQTT, JSON REST API)
• Dimensions H×W×D
  42×63×225 mm
• Transfer parameters
  32 Byte (In) 32 Byte (Out) per IO-Link port
• Monitoring - temperature
  yes
• Protocols
  CoE; FoE; EoE; AoE
• Diagnostic via BUS
  per module and channel
• Monitoring - no voltage
  yes
• Protection
  IP67
• Web interface
  yes
• IO-Link
  8× Master
• Monitoring - energy
  yes (current and voltage)
• FMMU
  8
• Product article number of manufacturer
  54612
• Monitoring - under voltage
  yes
• Temperature range
  -25...+70 °C (storage temperature -40...+80 °C)
• Switching current per output
  max. 2 A per pin (short-circuit and overload-protected), max. 4 A per port
• Specification
  IO-Link Master V1.1.3
Fieldbus
Ethernet 10/100 Mbit/s; M12, D-coded
I/O ports
M12, 5-pole, A-coded
Communication status
via LED
Actuator supply UA
24 V DC (EN 61131-2), max. 10 A Port X0...X7
PIN 4
Input/output (port X0...X7); IO-Link master (port X0...X7)
Sensor-system/actuator supply
M12 Power, 5-pole, L-coded, 2× max. 16 A
Cable break
per port
Sensor supply US
24 V DC (EN 61131-2), max. 2 A load per port, short-circuit and overload protected, total max. 10 A port X0...X7
Operating modes
COM1; COM2; COM3 (automatic)
Actuator warning
per channel via LED and BUS
Type
for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
PIN 2
Input/Output (port X0...X7); U-Actuator IO-Link Class B (port X0...X7)
Diagnostic via LED
per module and channel
Port Class
Class A + B (not galvanically separated)
SYNC manager
4
Short-circuit and overload
yes
