4927084 Murr Elektronik I/O Distributors
Part#:4927084
Manufacturer:Murr Elektronik
Category:I/O Distributors
Product Lifecycle:Active
Product description

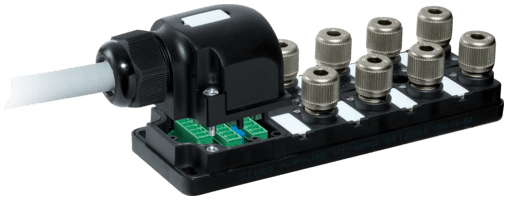

4927084 Murrelektronik - MVP12, 8XM12, MOSA, PLUGGABLE CABLE, 15.0m PUR-JB 16x0,34+5x0,75, with potent. sep.
Product Details
- Weight 3700 g
- Series Distribution Systems
- Locking of ports Cap nut
- C-track properties 1.5 Mio.
- Protection IP67 inserted and tightened (EN 60529)
- Operating current per contact max. 4 A
- No./diameter of wires 16× 0.34 + 5× 0.75 mm²
- Wire isolation PVC
- Cable number 404
- Bend radius (fixed) 10× outer Ø
- Bend radius (moving) 12× outer Ø
- Material (jacket) PUR/PVC
- Operating voltage 24 V DC
- Dimensions H×W×D 43×50.2×170 mm
- Housing Plastic, flame retardant
- Temperature range (fixed) -30...+80 °C
- Temperature range (mobile) -30...+80 °C
- Product article number of manufacturer 4927084
- Temperature range -20...+80 °C
- Resistor (core) max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
- PIN 5 (Earth)
- PIN 2 (NC)/(S2)
- Total current max. 2× 8 A
- Outer Ø 12.5 mm ±5%
- PIN 3 (-)
- Connection cross section 0.25...0.5 mm²
- Material (wire) Cu wire, bare
- PIN 1 (+)
- Signal per port 2
- Jacket Color gray
- PIN 4 (NO)/(S1)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
