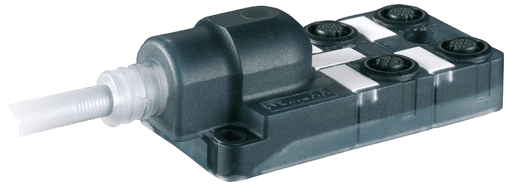

8000-84510-3630500 Murr Elektronik I/O Distributors

Product Details

• Weight
  790 g
• Series
  Distribution Systems
• Housing
  Plastic, flame retardant
• Cable weight [g/m]
  115,5 g
• Shield
  no
• Operating voltage
  24 V DC
• Material (wire)
  Cu wire, bare
• Shore hardness (wire isolation)
  43 ±5 D
• Outer-Ø (jacket)
  8.1 mm ±5%
• Protection
  IP65/IP67
• Cable Type
  2 (PUR/PVC)
• AWG
  similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
• Temperature range (fixed)
  -30...+80 °C
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• Locking of ports
  Screw thread (M12×1 mm)
• Outer Ø
  8.1 mm ±5%
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Travel speed (C-track)
  max. 2 m/s
• Operating current per contact
  max. 4 A
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Shore hardness (jacket)
87 ±5 A
Bend radius (moving)
10× outer Ø
PIN 1
(+)
C-track properties
2 Mio.
Wire isolation
PVC
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Diameter (core)
8× 0.34 + 3× 0.75 mm²
Material (jacket)
PUR/PVC
Temperature range (mobile)
-5...+70 °C
Test voltage
2000 V AC
PIN 3
(-)
PIN 5
(Earth)
Temperature range
-20...+70 °C, depending on cable quality
Cable number
363
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Bend radius (fixed)
5× outer Ø
Acceleration (C-track)
max. 10 m/s²
Cable identification
363
Material (wire isolation)
PVC
Current load capacity
to DIN VDE 0298-4
Color (jacket)
gray
Nominal voltage
U0/U 300/300 V AC
PIN 2
(NC)/(S2)
Product article number of manufacturer
8000-84510-3630500
No./diameter of wires
8× 0.34 + 3× 0.75 mm²
Single wire Ø (core)
0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
Color/numbering of wires
wh, ye, gr, grpk, rdbl, gn, whgn, brgn+bl, br, gnye longitudinally striped
Jacket Color
gray
PIN 4
(NO)/(S1)
