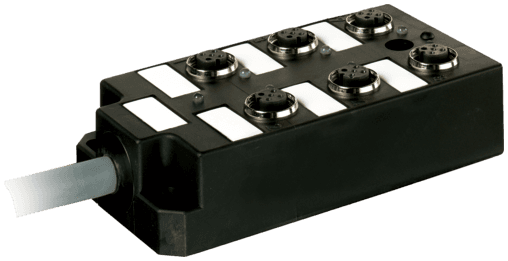

27845 Murr Elektronik I/O Distributors

Product Details

• Weight
  2700 g
• Series
  Distribution Systems
• Signal per port
  2
• Color (jacket)
  gray
• PIN 3
  (-)
• Protection
  IP67 inserted and tightened (EN 60529)
• Outer Ø
  9.8 mm ±5%
• PIN 2
  (NC)/(S2)
• Locking of ports
  Screw thread (M12×1 mm)
• Material (jacket)
  PUR/PVC
• Temperature range
  -20...+80 °C
• Cable number
  388
• Product article number of manufacturer
  27845
• Operating voltage
  24 V DC
• Bend radius (fixed)
  10× outer Ø
• Total current
  max. 10 A
• Wire isolation
  PVC (yebr, rd, grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, br, gnye, bl)
• Temperature range (mobile)
  -5...+70 °C
• Operating current per contact
  max. 4 A
• C-track properties
  2 Mio.
PIN 5
(Earth)
Jacket Color
gray
PIN 1
(+)
PIN 4
(NO)/(S1)
Dimensions H×W×D
100.5×54.5×25 mm
Temperature range (fixed)
-30...+80 °C
No./diameter of wires
12× 0.34 + 3× 0.75 mm²
Bend radius (moving)
12× outer Ø
